Place of Origin:
China
Brand Name:
Fengming
Certification:
CE certification
Model Number:
FM-CS1020
Video
Video

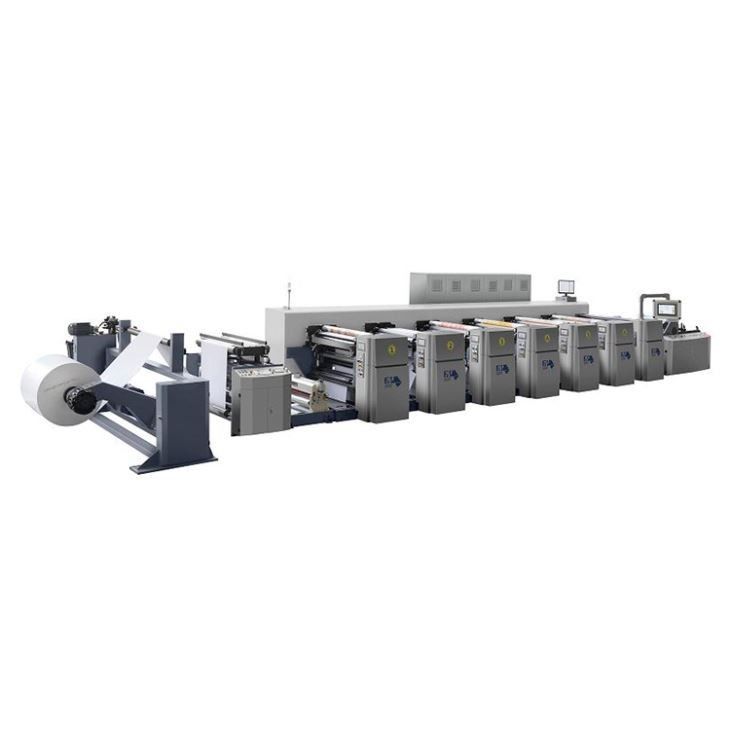

Water-Based Ink or UV Ink Flexo Printing Machine for Paper Materials
Application scope:
Suitable for eco-friendly packaging materials such as paper cups, paper boxes, paper bags and pre-printing of paper carton, different packages for food, housing, and wall paper printing etc.
Paper used:
Light weight coated paper, carton board materials, kraft paper, chrome paper, PVC wall paper, laminated paper, white cardboard paper, aluminium-foil paper etc.
Technical Parameters:
| Specification | 1020 |
| Max. Web Width | 1020mm |
| Max. Printing Width | 1000mm |
| Max Die-Cutting Width | 1000mm |
| Printing Repeat | 300-1200mm |
| Die-cutting Repeat | 300-1200mm |
| Max.Unwinder Diameter | 1524mm |
| Max.Rewinder Diameter | 1524mm |
| Gearing | 1/8cp |
| Max Printing Speed | 240m/min |
| Diameter of web roller | 100mm |
| Drying mode | Warm Drying/IR Drying/ UV Drying |
| Substrate | 80-450g chrome paper, aluminum-foil paper, BOPP, PET, paper board, kraft paper. |
Main Characteristics:
1. Capable of inline cleaning dust and printing.
2. Eco-friendly printing, use water based ink or UV ink
3. Ceramic anilox rollers can be used for a long time, and can supply ink appropriately.
4. Warm drying, IR drying, UV drying are available
5. Closed loop tension control is used to make printing tension much more stable, and register much more accurate.
6. Automatically electronic web-guide system
7. Online printing register detection
8. Register system can be operated automatically or by manual.
