Place of Origin:
China
Brand Name:
Fengming
Certification:
CE certification
Model Number:
FM-S1450
Video
Video

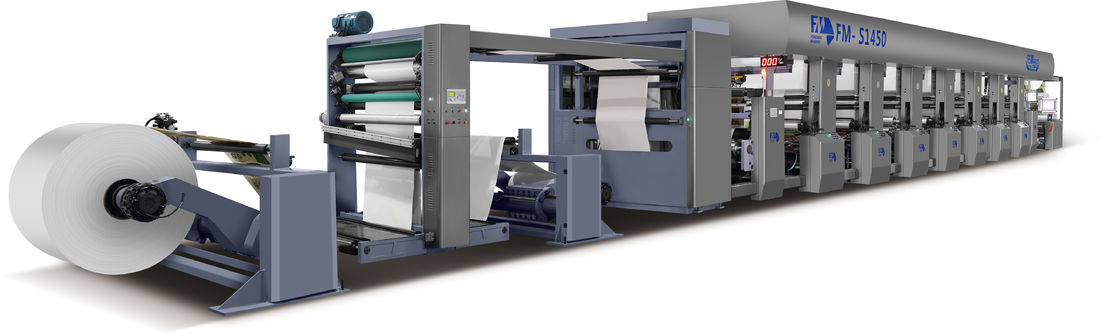

FM-S1450 Wide Web Paper Box Preprint Flexo Printing Machine with Servo Control
FM-S1450 Wide Web Paper Box Preprint Flexo Printing Machine - Servo Control MainCharacteristics
Wide Web Preprint Flexographic Printing Machine-Servo Control is suit for customer need, this kind machine using servo motor for control of 80- 400gsrn paper, printing width from 1450mm to 2250rnrn, printing repeat from 600mm to 1600mm, Max. Speed can be 220m/min, and suit for carton box pre-print, release paper and milk carton etc products. This kind of machine is ideal for printing ＆packing companies who have long-run order, order change faster and high printing quality requirement.
Technical Parameters:
|
Specification |
1450 |
1650 |
1850 |
2250 |
|
Max. Web Width |
1450mm |
1650mm |
1850mm |
2250mm |
|
Max. Printing Width |
1430mm |
1630mm |
1830mm |
2200mm |
|
Max Die-Cutting Width |
1430mm |
1630mm |
1830mm |
2200mm |
|
Printing Repeat |
600-1600mm |
600-1600mm |
600-1600mm |
600-1600mm |
|
Max.Unwinder Diameter |
1524mm |
1524mm |
1524mm |
1524mm |
|
Max.Rewinder Diameter |
1524mm |
1524mm |
1524mm |
1524mm |
|
Gearing |
1/8cp |
1/8cp |
1/8cp |
1/8cp |
|
Max Printing Speed |
160-220m/min |
160-220m/min |
160-220m/min |
160-220m/min |
|
Diameter of web roller |
100mm |
100mm |
100mm |
100mm |
|
Drying mode |
Warm Drying/IR Drying/ UV Drying |
|||
|
Oil used |
Aqueous ink/ UV Ink |
|||
|
Power Requirement |
380V 3PH 50Hz |
|||
|
Substrate |
17g copy paper, cotton paper, 80-450g chrome paper, aluminum-foil paper, BOPP, PET, paper board, kraft paper |
|||
