Place of Origin:
CHINA
Brand Name:
FENGMING
Certification:
CE
Model Number:
FM-B1020
Video
Video

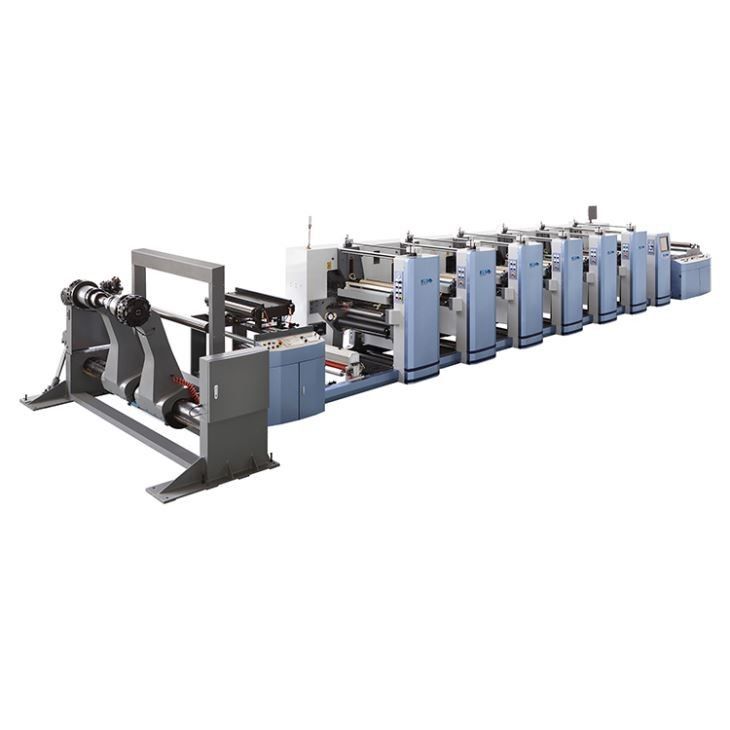

Paper Roll to roll Flexo Printing Machine
1, Ceramic anilox cylinder are adopted for ink transferring.
2, The unwinding and rewinding units are designed with magnetic powder brakes and clutchs for tension control, and flexo machine equipped with Mitsubishi auto tension controller.
3, Each printing unit is adopted 360°printing plate-adjustment.
4, All printing units are equipped with a group of hot air dryer.(UV dryer is for option)
5, The machine has one die-cutting station, and it can make printing and die cutting finished in one process.
6, The ink rollers will be automatically separated from the printing roller, and it will keep rotating at a low speed, thus preventing ink from drying.
7, The main motor is equipped with an imported variable frequency stepless speed govermor.This guarantees the stable performance of flexo press.
|
Model |
FM-1020 |
|
Printing speed |
180m/min |
|
Printing color |
5colours |
|
Max. web width |
1020mm |
|
Max .printing width |
1000mm |
|
Max. Unwinder/Rewinder diameter |
1524mm |
|
Printing length |
300-1200mm |
