Place of Origin:
China
Brand Name:
Fengming
Certification:
CE certification
Model Number:
FM-CS1350
Video
Video

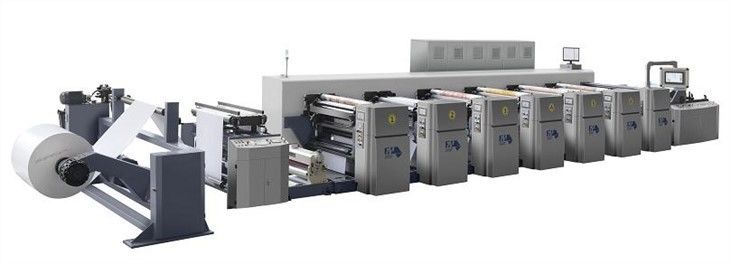

1350mm Printing Width Flexographic Printing Machine for Paper Printing
This machine is a printing machine that uses a flexible photosensitive resin or rubber plate as the substrate, and transfers ink through anilox rollers to print on the substrate with liquid ink. The water-based ink printing is green and pollution-free, in line with international environmental printing standards. It is controlled centrally by PLC system and generally consists of unwinding section, infeed section,printing section, drying section, outfeed section, rewinding section and control section. With its reasonable structure, fast printing speed and simple operation, this machine is the ideal paper printing machine in the world today.
Main Technical Parameter:
|
Specification |
CE ISO9001 |
|
Max.Web Width |
1370mm |
|
Max.printing width |
1350mm |
|
Max.Die-cutting width |
1350mm |
|
Printing Repeat length |
300--1200mm |
|
Die-cutting Repeat length |
300--1200mm |
|
Max.Unwinder Diameter |
1524mm |
|
Max.Rewinder Diameter |
1524mm |
|
Gearing |
1/8cp |
|
Max. mechanical speed |
240m/min |
|
Max printing speed |
160-200m/min |
|
Diameter of web roller |
100mm |
|
Base motor power |
11KW |
|
Drying mode |
a. WARM DRYING b. IR DRYING |
|
Applicable Ink |
a. Water-based ink b. UV ink |
|
Power Requirement |
380V 3PH 50Hz |
|
Printing Material |
Kraft paper, paperboard, coated paper, liner paper, laminated paper, multilayer composite paper, carton board materials ect |
delivery and package:
