Place of Origin:
China
Brand Name:
Fengming
Certification:
CE certification
Model Number:
FM-CS1020
Video
Video

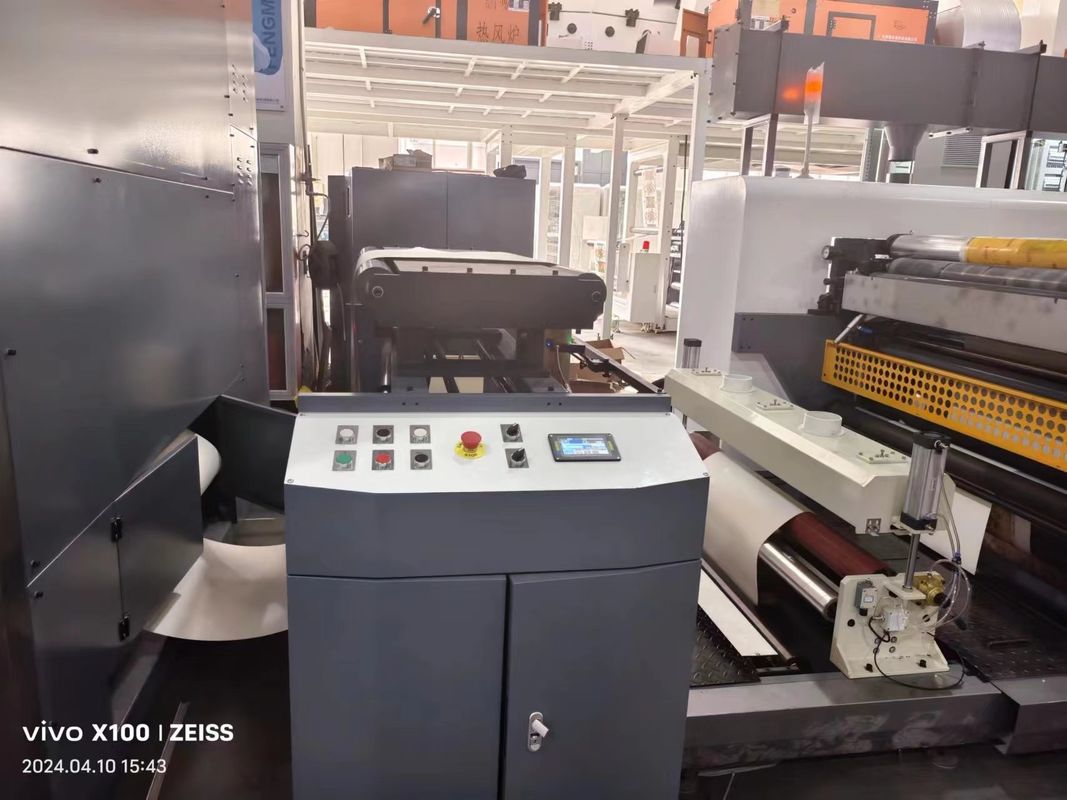

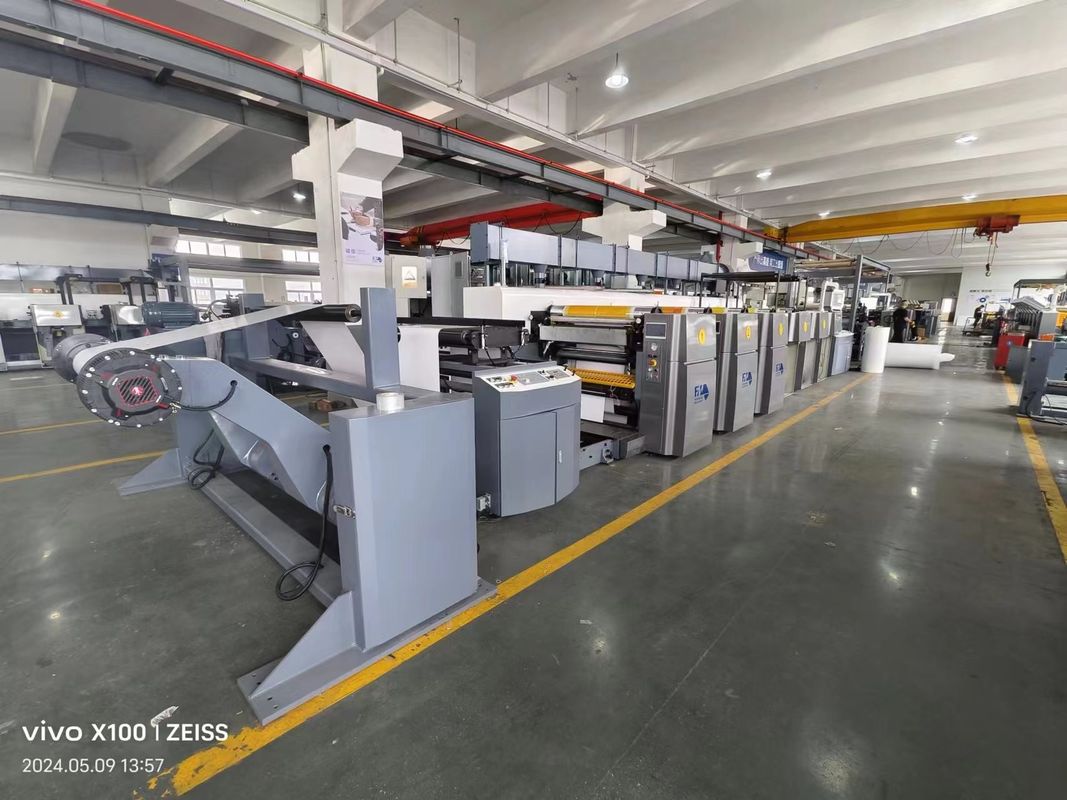

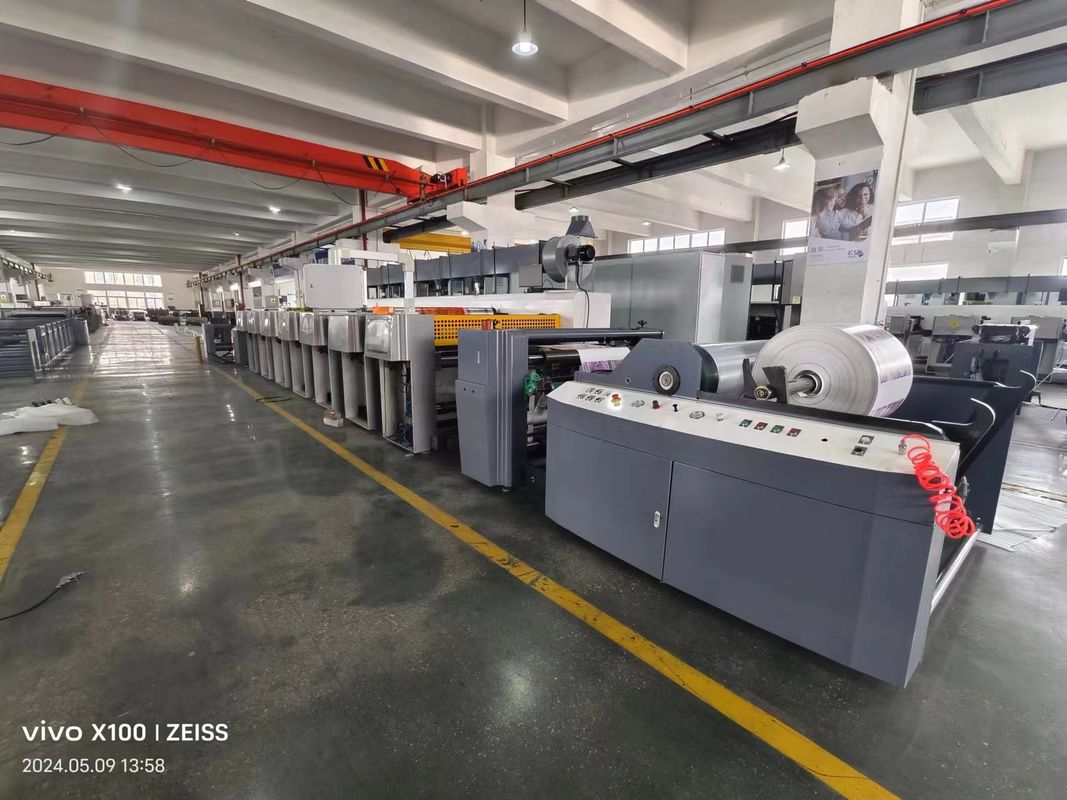

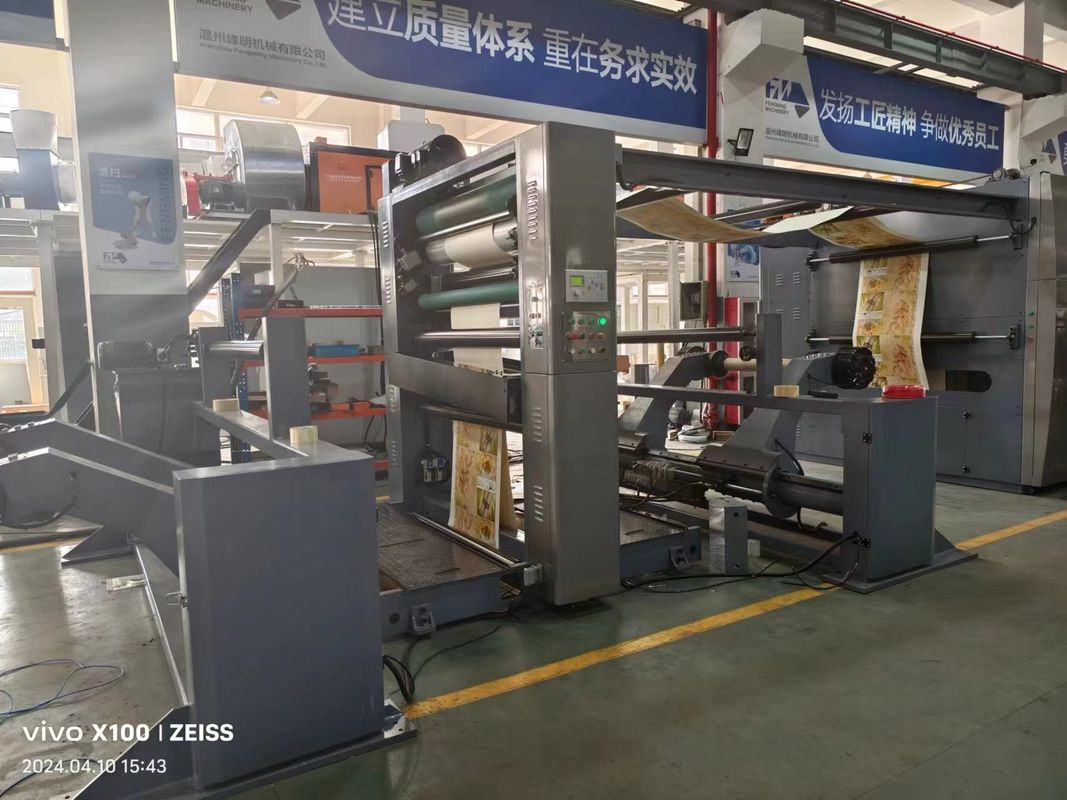

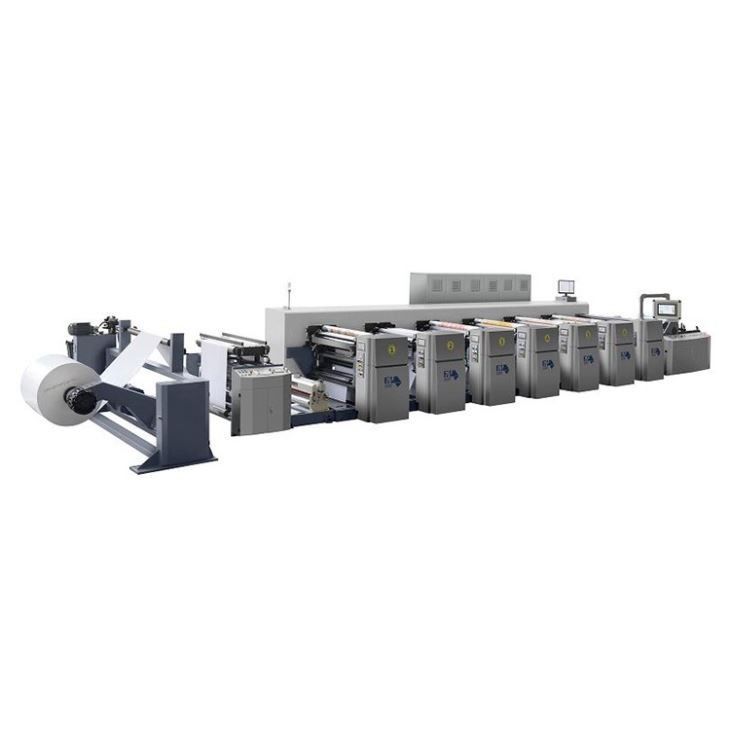

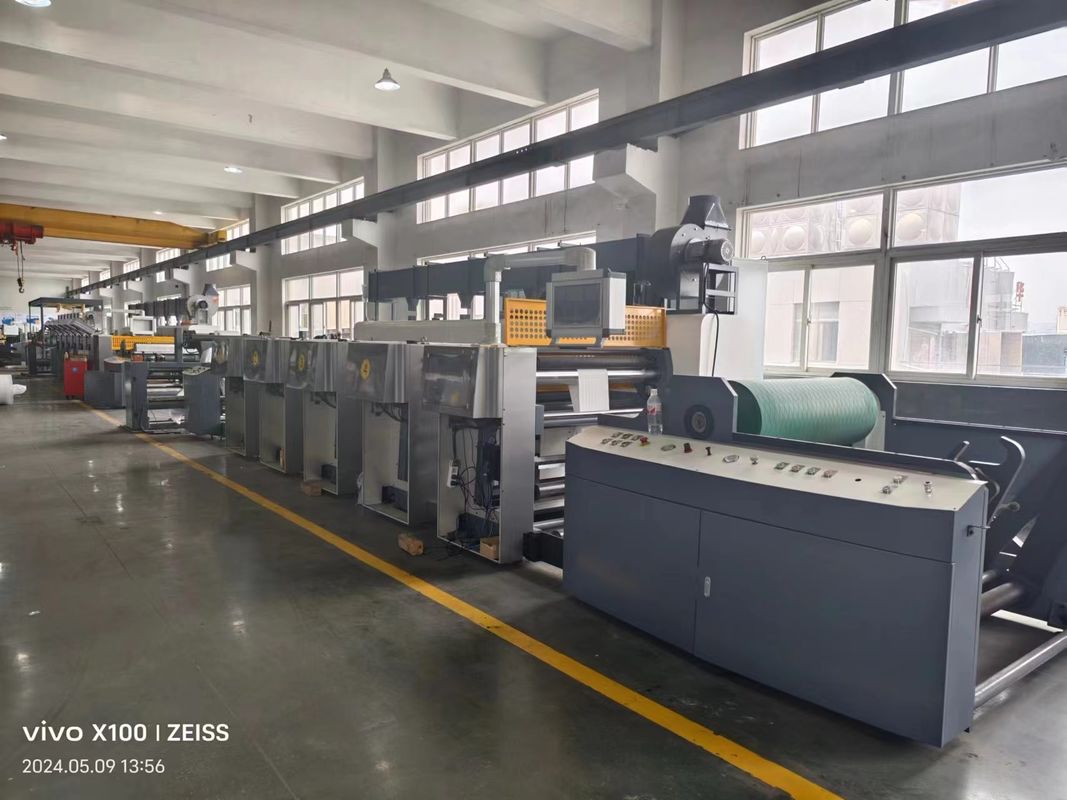

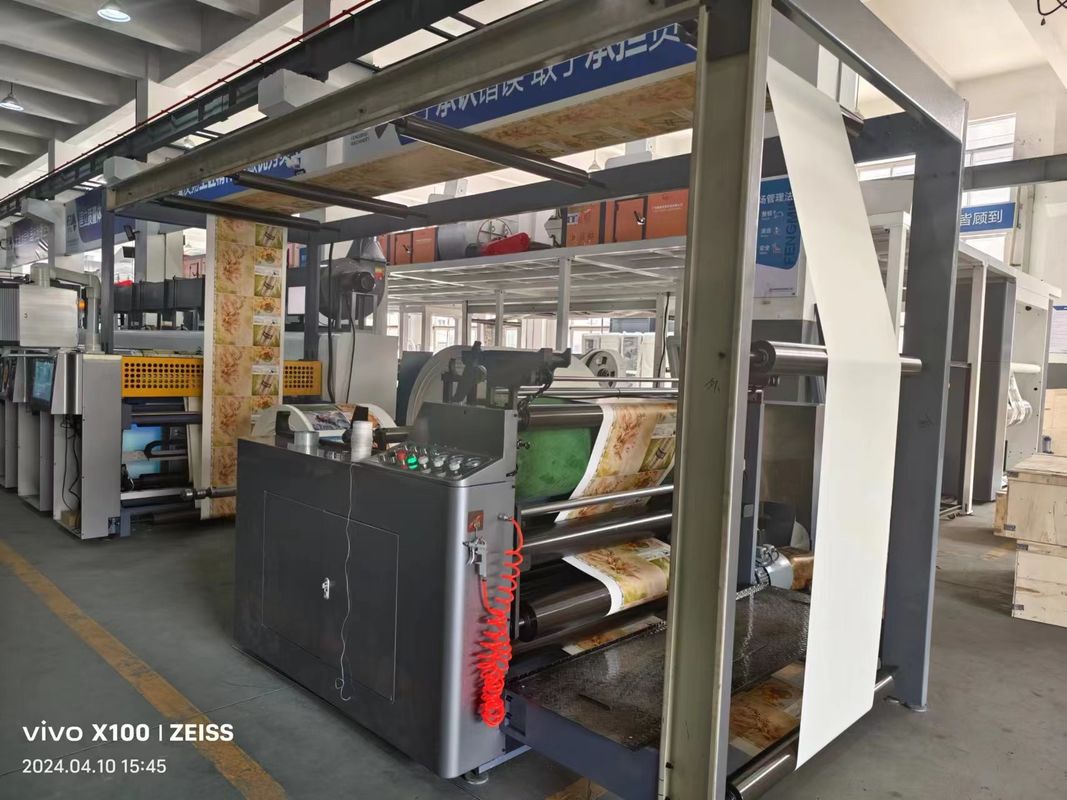

It is controlled centrally by PLC system and generally consists of unwinding section, infeed section,printing section, drying section, outfeed section, rewinding section and control section.This machine is an ideal machine for printing paper cup, carton, paper bag, paper package, and so on
Main Technical Parameter:
|
Specification |
39.5"(1000) |
|
Max.Web Width |
1020mm |
|
Max.printing width |
1000mm |
|
Max.Die-cutting width |
1000mm |
|
Printing Repeat length |
286--1200mm |
|
Die-cutting Repeat length |
286--1200mm |
|
Max.Unwinder Diameter |
1524mm |
|
Max.Rewinder Diameter |
1524mm |
|
Gearing |
1/8cp |
|
Max. mechanical speed |
150m/min |
|
Max printing speed |
120m/min |
|
Diameter of web roller |
100mm |
|
Base motor power |
11KW |
|
Drying mode |
a. WARM DRYING b. IR DRYING |
|
Applicable Ink |
a. Water-based ink b. UV ink |
|
Power Requirement |
380V 3PH 50Hz |
|
Printing Material |
Light weight coated paper, carton board materials, kraft paper, chrome paper, PVC wall paper, laminated paper, white cardboard paper, aluminium-foil paper |
