Place of Origin:
China
Brand Name:
Fengming
Certification:
CE certification
Model Number:
FM-B900
Video
Video

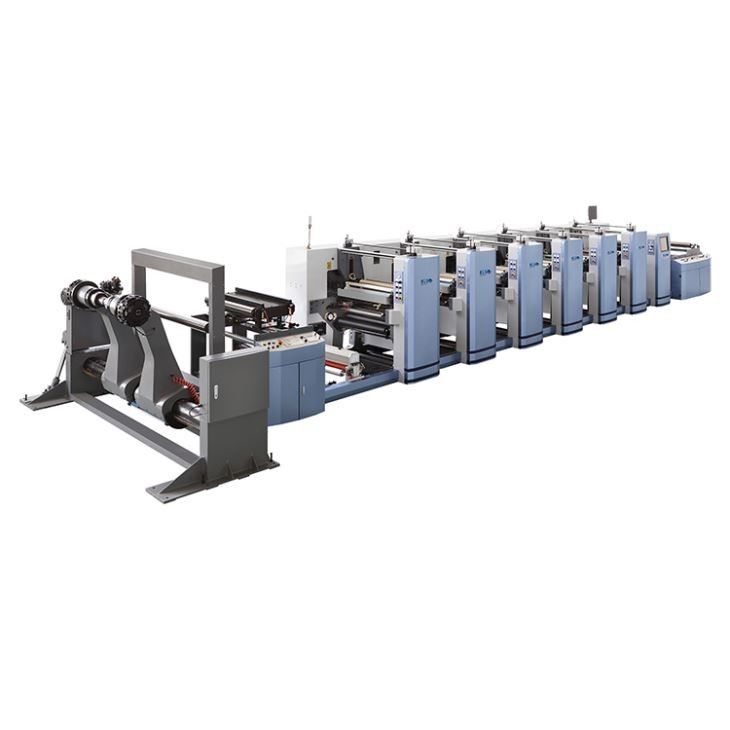

1/8cp Gearing Flexographic Printing Machine for Precise and Accurate Printing
Main Characteristics:
1. Capable of inline cleaning dust, printing, and cutting
2. Eco-friendly printing, adopt water-based ink orUV ink
3. Ceramicanilox rollers can be used for a long time, and can supply ink appropriately.
4. Warm drying, IR drying, UV drying are available
5. Adopt closed loop tension control system to make printing tension much more stable , and register much more accurate.
6. Automatically electronic web-guide system
7. Online printing register detection
8. Register system can be operated automatically or by manual.
| Specification |
35.5"(900) |
|
Max.Web Width |
920mm |
|
Max.printing width |
900mm |
|
Max.Die-cutting width |
900mm |
|
Printing Repeat length |
286--1200mm |
|
Die-cutting Repeat length |
286--1200mm |
|
Max.Unwinder Diameter |
1524mm |
|
Max.Rewinder Diameter |
1524mm |
|
Gearing |
1/8cp |
|
Max printing speed |
150m/min |
|
Diameter of web roller |
100mm |
|
Base motor power |
11kw |
|
Drying mode |
A.Warm Drying b.IR Drying c.UV Drying(optional) |
|
Suitable Ink |
Water based Ink or UV ink(UV Drying) |
|
Power Requirement |
380V 3PH 50Hz |
