FM-CS Paper Cup Flexo Printing Machine Servo Control for Flexible Packaging Printing

Flexible Packaging Printing Machine

Request A Quote

Product Details

Model NO.:

FM-CS

Type:

Flexo

Embossing Structure:

Rotary Letterpress

Structure:

Unit Type

Application:

Flexible Packaging Printing

Automatic Grade:

Automatic

Printing Speed:

200m/min

Max. Web Width:

1020mm

Max. Printing Width:

1000mm

Printing Repeat:

300-1200mm

Max.Unwinder Diameter:

1524mm

Max.Rewinder Diameter:

1524mm

Gearing:

1/8cp

Machine Speed:

240m/Min

Diameter Of Web Roller:

100mm

Drying Mode:

Hot Air Drying & IR Drying

Printing Material:

Various Kinds Of Paper 60-250GSM

Transport Package:

Wooden Pallet With Film Package

Specification:

1020mm

Trademark:

Fengming

Origin:

Zhejiang, China

HS Code:

8443160090

Supply Ability:

5PCS/Month

After-sales Service:

After-Sales Service Is Available Overseas

Warranty:

1 Year

Printing Page:

Single Faced

Printing Color:

6 Colors

Anilox Roller:

Ceramic Anilox Roller

Dryer:

Customization:

Available | Customized Request

Payment & Shipping Terms

Auto Flexographic Printer, Front Side 9 Colors Back Side 1 Colors Flexo Label Flexographic Printer Printing Press

Get Best Price

Video

Automatic Flexo Printing Machine Flexographic Printers Flexo Printing Machine Roll To Roll

Get Best Price

Video

automatic Flexo Printing Machine Plastic Film and Paper label unit type flexo printing machine Colors

Get Best Price

Video

FM-CS 1350 Flexo Printing Machine For Paper Plate With Online Video Technical Support

Get Best Price

86-577-63796999

Contact Now

Product Description

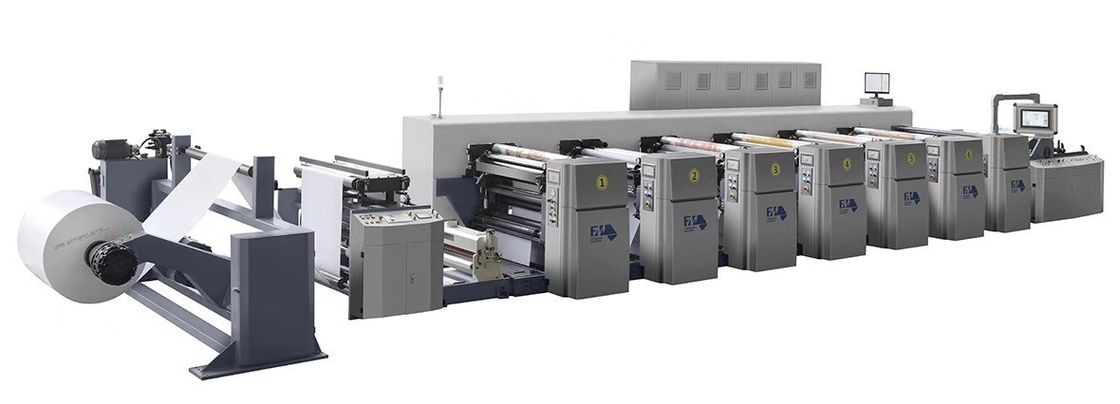

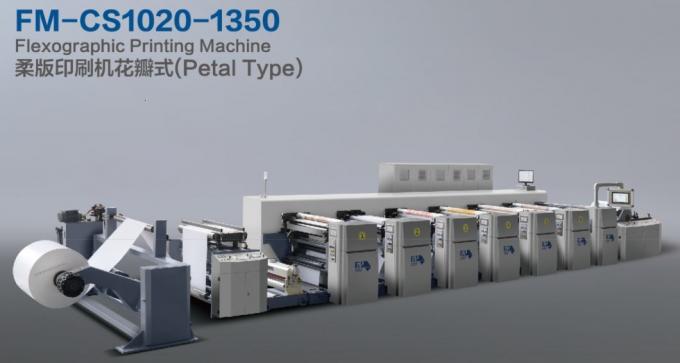

FM-CS1020-1350 Flexographic Printing Machine (Petal Type)

Petal type plate mounting, anilox and cylinder with quick change structure.
Printing unit easy operation, cylinder and anilox pressing once successfuly.
Plate full servo shaftless transmission, automatically pre-print, time saving & material saving.
Registering remains the same during lifting process.
Register position automatic memory function.

Applications

Suitable for eco-friendly packaging, such as the paper bag used for food and healthcare industry, paper box, paper cup, the pre-printing carton of paper bag, bag courier, milk carton medicine use.

Paper Used

Kraft paper, paperboard, coated paper, liner paper, laminated paper, multilayer composite paper, carton board materials ect.

Technical Parameters

Specification	1020	1300	1350
Max. Web Width	1020mm	1300mm	1350mm
Max. Printing Width	1000mm	1270mm	1320mm
Max Die-Cutting Width	1000mm	1270mm	1320mm
Printing Repeat	300-1200mm	300-1200mm	300-1200mm
Die-cutting Repeat	300-1200mm	300-1200mm	300-1200mm
Max.Unwinder Diameter	1524mm	1524mm	1524mm
Max.Rewinder Diameter	1524mm	1524mm	1524mm
Gearing	1/8cp	1/8cp	1/8cp
Max Printing Speed	240m/min	240m/min	240m/min
Diameter of web roller	100mm	100mm	100mm
Drying mode	Hot Air Drying/IR Drying/ UV Drying
Printing material	Single / Double PE coated paper, art paper, kraft paper, hamburger paper
