High Speed Servo Control 6 Color Flexo Printing Machine with Customization Capability

High Speed Servo Control 6 Color Flexo Printing Machine with Customization Capability

servo control 6 color flexo printing machine

high speed 6 color printing machine

high speed 6 color flexo printing machine

Place of Origin:

CHINA

Brand Name:

FENGMING

Certification:

CE

Model Number:

FM-CS1020

Contact Us
Request A Quote
High Speed Servo Control 6 Color Flexo Printing Machine with Customization Capability
High Speed Servo Control 6 Color Flexo Printing Machine with Customization Capability High Speed Servo Control 6 Color Flexo Printing Machine with Customization Capability High Speed Servo Control 6 Color Flexo Printing Machine with Customization Capability High Speed Servo Control 6 Color Flexo Printing Machine with Customization Capability High Speed Servo Control 6 Color Flexo Printing Machine with Customization Capability High Speed Servo Control 6 Color Flexo Printing Machine with Customization Capability
Product Details
Model NO.:
FM-CS1020
Structure:
Unit Type
Application:
Flexible Packaging Printing
Automatic Grade:
Automatic
Printing Speed:
200m/min
Max. Web Width:
1020mm
Max. Printing Width:
1000mm
Printing Repeat Length:
300-1200mm
Max.Unwinder Diameter:
1524mm
Max.Rewinder Diameter:
1524mm
Gearing:
1/8cp
Machine Speed:
240m/Min
Diameter Of Web Roller:
100mm
Drying Mode:
Hot Air Drying & IR Drying
Printing Material:
Various Kinds Of Paper 60-250GSM
Transport Package:
Wooden Pallet With Film Package
Specification:
1020mm
Trademark:
Fengming
Origin:
Zhejiang, China
HS Code:
8443160090
Supply Ability:
5PCS/Month
Printing Page:
Single Faced
Printing Color:
6 Colors
Anilox Roller:
Ceramic Anilox Roller
Dryer:
IR
Type:
Flexo
Embossing Structure:
Rotary Letterpress
Customization:
Available | Customized Request
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
wooden pallet
Delivery Time
30 working days
Payment Terms
T/T, L/C
Supply Ability
15 sets
RELATED PRODUCTS
Good price Auto Flexographic Printer, Front Side 9 Colors Back Side 1 Colors Flexo Label Flexographic Printer Printing Press online Video

Auto Flexographic Printer, Front Side 9 Colors Back Side 1 Colors Flexo Label Flexographic Printer Printing Press

Get Best Price
Good price Automatic Flexo Printing Machine Flexographic Printers Flexo Printing Machine Roll To Roll online Video

Automatic Flexo Printing Machine Flexographic Printers Flexo Printing Machine Roll To Roll

Get Best Price
Good price automatic Flexo Printing Machine Plastic Film and Paper label unit type flexo printing machine Colors online Video

automatic Flexo Printing Machine Plastic Film and Paper label unit type flexo printing machine Colors

Get Best Price
Good price FM-CS 1350 Flexo Printing Machine For Paper Plate With Online Video Technical Support online Video

FM-CS 1350 Flexo Printing Machine For Paper Plate With Online Video Technical Support

Get Best Price
Contact Us
86-577-63796999
Contact Now
Product Description

High Speed Servo Control 6 Color Flexo Printing Machine with Customization Capability

High Speed Servo Control 6 Color Flexo Printing Machine

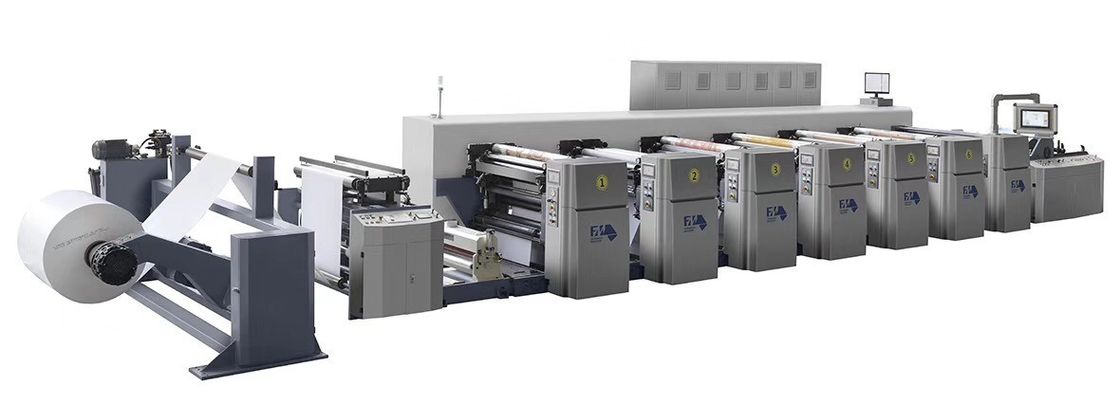

FM-CS1020-1350 Flexographic Printing Machine (Petal Type)

  1. Petal type plate mounting, anilox and cylinder with quick change structure.
  2. Printing unit easy operation, cylinder and anilox pressing once successfuly.
  3. Plate full servo shaftless transmission, automatically pre-print, time saving & material saving.
  4. Registering remains the same during lifting process.
  5. Register position automatic memory function.

Applications

Suitable for eco-friendly packaging, such as the paper bag used for food and healthcare industry, paper box, paper cup, the pre-printing carton of paper bag, bag courier, milk carton medicine use.

Paper Used

Kraft paper, paperboard, coated paper, liner paper, laminated paper, multilayer composite paper, carton board materials ect.

Technical Parameters

Specification 1020 1300 1350
Max. Web Width 1020mm 1300mm 1350mm
Max. Printing Width 1000mm 1270mm 1320mm
Max Die-Cutting Width 1000mm 1270mm 1320mm
Printing Repeat 300-1200mm 300-1200mm 300-1200mm
Die-cutting Repeat 300-1200mm 300-1200mm 300-1200mm
Max.Unwinder Diameter 1524mm 1524mm 1524mm
Max.Rewinder Diameter 1524mm 1524mm 1524mm
Gearing 1/8cp 1/8cp 1/8cp
Max Printing Speed 240m/min 240m/min 240m/min
Diameter of web roller 100mm 100mm 100mm
Drying mode Hot Air Drying/IR Drying/ UV Drying
Printing material Single / Double PE coated paper, art paper, kraft paper, hamburger paper

Function Units
  1. Unwinding Unit
  1. Shaftless unwinding unit
  2. Unwind unit 60"(1524mm)capacity
  3. Mandrel 3" and 6" diameter
  4. Hydraulic paper shaft lifting and descending device: mainly used for loading and unloading of paper rollers, no need of forklift or other handling tools
  5. Web break sensor, automatically shut down when paper broken
      2. Web Guide System
  1. Paper Splicing Table : with pneumatic paper holding device.
  2. Ball screw electric actuator
  3. Adopt the photoelectric sensor for web guide transmission
  4. Electronic web guide traction device. If there is any excursion in paper feeding,the system will have a constant and accurate adjustment
  5. Adopt closed loop control system to accurately detect the deviation and correct it
  6. Hard Anodization to the paper guide HV 800-1000
  7. Inspection:the edge
  8. Web Guide precision:±0.02mm

      3.In-feed Tension Control Unit
  1. Use the double side pressure rubber roller to clutch and feed paper and to ensure the tension
  2. Infeed unit with servo motor drive, epicyclic gear box
     4.Printing Units(shaftless, single servo motor drive in each station)
  1. Servo motor conrtol press cylinder,can realized the pre register function, the anilox roll and printing cylinder are gear box drive
  2. Plate cylinders is designed in flower type structure and the plates can be changed without tools and no need adjust the pressure

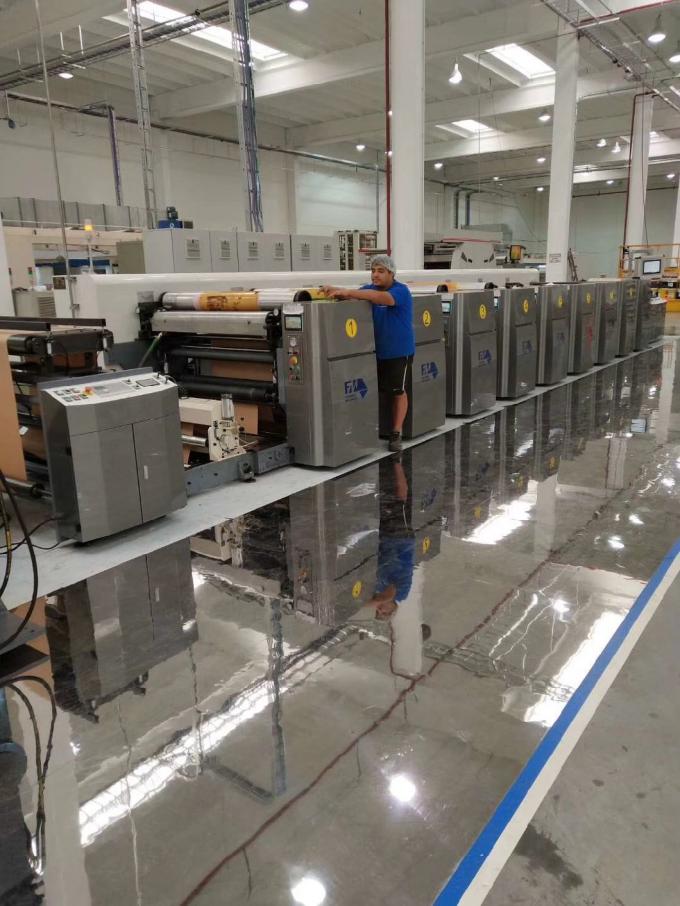

High Speed Servo Control 6 Color Flexo Printing Machine

High Speed Servo Control 6 Color Flexo Printing Machine
High Speed Servo Control 6 Color Flexo Printing Machine
High Speed Servo Control 6 Color Flexo Printing Machine
High Speed Servo Control 6 Color Flexo Printing Machine
