High Speed Paper Bag/Paper Cup Printing Press Machine with Printing Speed of 150m/mim

High Speed Paper Bag/Paper Cup Printing Press Machine with Printing Speed of 150m/mim

high speed unit type

high speed flexographic printing machine 6 color

paper bag unit type

Place of Origin:

CHINA

Brand Name:

FENGMING

Certification:

CE

Model Number:

FM-B1020

Contact Us
Request A Quote
High Speed Paper Bag/Paper Cup Printing Press Machine with Printing Speed of 150m/mim High Speed Paper Bag/Paper Cup Printing Press Machine with Printing Speed of 150m/mim High Speed Paper Bag/Paper Cup Printing Press Machine with Printing Speed of 150m/mim High Speed Paper Bag/Paper Cup Printing Press Machine with Printing Speed of 150m/mim High Speed Paper Bag/Paper Cup Printing Press Machine with Printing Speed of 150m/mim High Speed Paper Bag/Paper Cup Printing Press Machine with Printing Speed of 150m/mim
Product Details
Model NO.:
FM-B
Dryer:
UV& IR
Type:
Flexo
Embossing Structure:
Rotary Letterpress
Structure:
Unit Type
Application:
Flexible Packaging Printing
Automatic Grade:
Automatic
Printing Speed:
150m/mim
Max. Web Width:
1020mm
Max, Printing Width:
1000mm
Printing Repeat Length:
286-1200mm
Max. Unwinder & Rewinder:
1524mm
Gearing:
1/8cp
Max. Speed:
150m/Min
Diameter Of Web Roller:
100mm
Drying Mode:
Hot Air Drying & IR Drying
Ink Used:
Water-Based Ink
Printing Material:
60-400GSM Paper Roll
Transport Package:
Wooden Pallet With Film Package
Specification:
CE
Trademark:
Fengming
Origin:
Zhejiang, China
HS Code:
8443160090
Supply Ability:
10 Sets/Month
Printing Page:
Single Faced
Printing Color:
4 Colors
Anilox Roller:
Ceramic Anilox Roller
Customization:
Available | Customized Request
Shipping Cost:
About Shipping Cost And Estimated Delivery Time.
 :
Initial Payment Full Payment
Currency:
US$
Return&refunds:
You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
wooden pallet
Delivery Time
30 working days
Payment Terms
T/T, L/C
Supply Ability
15 sets
RELATED PRODUCTS
Good price Auto Flexographic Printer, Front Side 9 Colors Back Side 1 Colors Flexo Label Flexographic Printer Printing Press online Video

Auto Flexographic Printer, Front Side 9 Colors Back Side 1 Colors Flexo Label Flexographic Printer Printing Press

Get Best Price
Good price Automatic Flexo Printing Machine Flexographic Printers Flexo Printing Machine Roll To Roll online Video

Automatic Flexo Printing Machine Flexographic Printers Flexo Printing Machine Roll To Roll

Get Best Price
Good price automatic Flexo Printing Machine Plastic Film and Paper label unit type flexo printing machine Colors online Video

automatic Flexo Printing Machine Plastic Film and Paper label unit type flexo printing machine Colors

Get Best Price
Good price FM-CS 1350 Flexo Printing Machine For Paper Plate With Online Video Technical Support online Video

FM-CS 1350 Flexo Printing Machine For Paper Plate With Online Video Technical Support

Get Best Price
Contact Us
86-577-63796999
Contact Now
Product Description

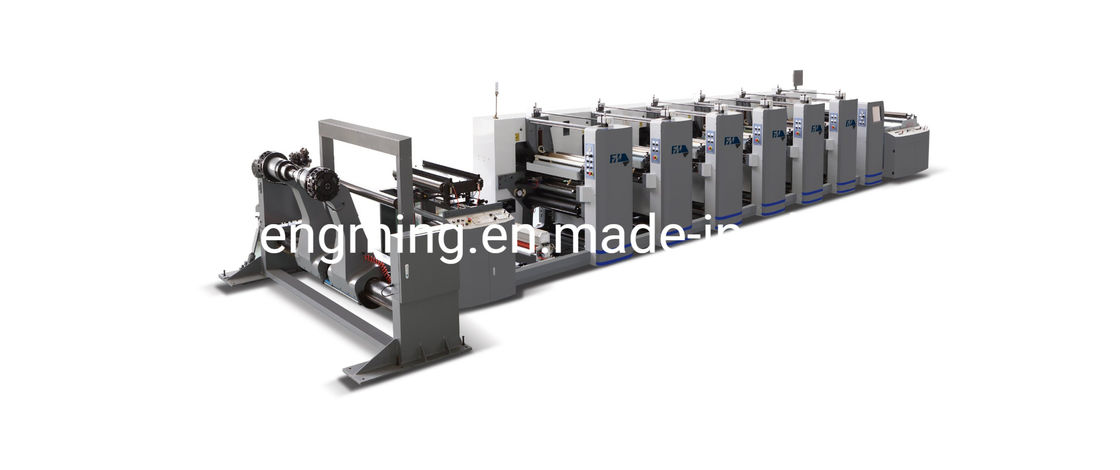

 High Speed Paper Bag/Paper Cup Printing Press Machine with Printing Speed of 150m/mim

High Speed Paper Bag / Paper Cup Printing Press Machine

FM-B650-920-1320  Flexographic Printing Machine

Technical Parameters:
Specification 650 920 1020 1220 1320
Max. Web Width 650mm 920mm 1020mm 1220mm 1320mm
Max. Printing Width 600mm 900mm 1000mm 1200mm 1300mm
Max Die-Cutting Width 600mm 900mm 1000mm 1200mm 1300mm
Printing Repeat 286-1200mm 286-1200mm 286-1200mm 286-1200mm 286-1200mm
Max.Unwinder Diameter 1524mm 1524mm 1524mm 1524mm
Max.Rewinder Diameter 1524mm 1524mm 1524mm 1524mm 1524mm
Gearing 1/8cp 1/8cp 1/8cp 1/8cp 1/8cp
Max Printing Speed 150m/min 150m/min 150m/min 150m/min 150m/min
Diameter of web roller 100mm 100mm 100mm 100mm 100mm
Drying mode Hot Air Drying/IR Drying/ UV Drying
Oil used Aqueous ink/ UV Ink
Power Requirement 380V 3PH 50Hz
Substrate 17g copy paper, cotton paper, 80-400g art paper, aluminum-foil paper, paper board, kraft paper
