Multi-Color Paper Cup/Bag Printing Machine with Rotary Letterpress Embossing Structure

Multi-Color Paper Cup/Bag Printing Machine with Rotary Letterpress Embossing Structure

paper cup bag printing machine

paper cup aluminium printing machine

1/8cp bag printing machine

Place of Origin:

CHINA

Brand Name:

FENGMING

Certification:

CE

Model Number:

FM-CS1020

Contact Us
Request A Quote
Multi-Color Paper Cup/Bag Printing Machine with Rotary Letterpress Embossing Structure Multi-Color Paper Cup/Bag Printing Machine with Rotary Letterpress Embossing Structure Multi-Color Paper Cup/Bag Printing Machine with Rotary Letterpress Embossing Structure Multi-Color Paper Cup/Bag Printing Machine with Rotary Letterpress Embossing Structure Multi-Color Paper Cup/Bag Printing Machine with Rotary Letterpress Embossing Structure Multi-Color Paper Cup/Bag Printing Machine with Rotary Letterpress Embossing Structure
Product Details
Model NO.:
FM-CS
Structure:
Unit Type
Application:
Flexible Packaging Printing
Automatic Grade:
Automatic
Printing Speed:
200m/min
Max. Web Width:
1370mm
Max. Printing Width:
1350mm
Printing Repeat Length:
300-1200mm
Max.Unwinder Diameter / Rewinder:
1524mm
Gearing:
1/8cp
Diameter Of Web Roller:
100mm
Drying Mode:
Hot Air Drying & IR Drying / UV Drying
Printing Material:
60-350GSM Paper Roll
Transport Package:
Wooden Pallet With Film Package
Specification:
CE ISO9001
Trademark:
Fengming
Origin:
China
HS Code:
8443160090
Supply Ability:
5 Sets / Month
Printing Page:
Single Faced
Printing Color:
8 Colors
Anilox Roller:
Ceramic Anilox Roller
Dryer:
UV& IR
Type:
Flexo
Embossing Structure:
Rotary Letterpress
Customization:
Available | Customized Request
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
wooden pallet
Delivery Time
30 working days
Payment Terms
T/T, L/C
Supply Ability
15 sets
RELATED PRODUCTS
Good price Auto Flexographic Printer, Front Side 9 Colors Back Side 1 Colors Flexo Label Flexographic Printer Printing Press online Video

Auto Flexographic Printer, Front Side 9 Colors Back Side 1 Colors Flexo Label Flexographic Printer Printing Press

Get Best Price
Good price Automatic Flexo Printing Machine Flexographic Printers Flexo Printing Machine Roll To Roll online Video

Automatic Flexo Printing Machine Flexographic Printers Flexo Printing Machine Roll To Roll

Get Best Price
Good price automatic Flexo Printing Machine Plastic Film and Paper label unit type flexo printing machine Colors online Video

automatic Flexo Printing Machine Plastic Film and Paper label unit type flexo printing machine Colors

Get Best Price
Good price FM-CS 1350 Flexo Printing Machine For Paper Plate With Online Video Technical Support online Video

FM-CS 1350 Flexo Printing Machine For Paper Plate With Online Video Technical Support

Get Best Price
Contact Us
86-577-63796999
Contact Now
Product Description

Multi-Color Paper Cup/Bag Printing Machine with Rotary Letterpress Embossing Structure

High Speed / High Quality Hot Sale Multi-Color Printing Machine for Paper Cup/ Paper Bag

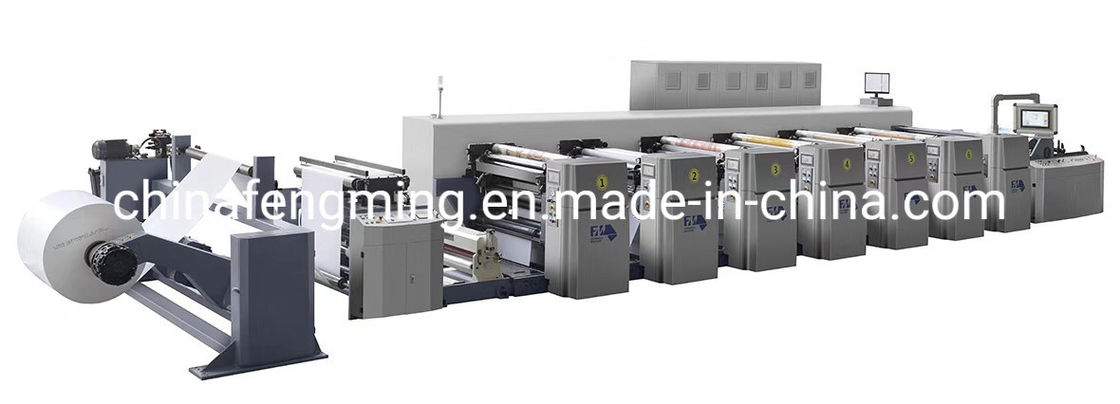

FM-CS1020-1350 Flexographic Printing Machine (Petal Type)

  1. Petal type plate mounting, anilox and cylinder with quick change structure.
  2. Printing unit easy operation, cylinder and anilox pressing once successfuly.
  3. Plate full servo shaftless transmission, automatically pre-print, time saving & material saving.
  4. Registering remains the same during lifting process.
  5. Register position automatic memory function.

Applications:

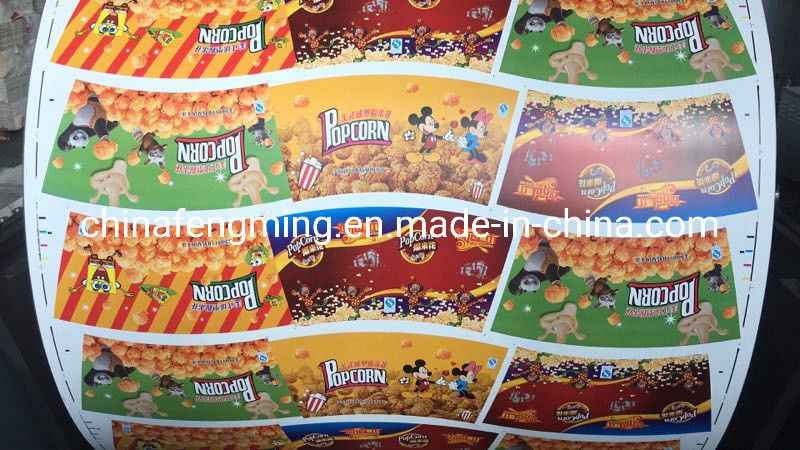

Suitable for eco-friendly packaging, such as the paper bag used for food and healthcare industry, paper box, paper cup, the pre-printing carton of paper bag, bag courier, milk carton medicine use.

Paper Used:
Kraft paper, paperboard, coated paper, liner paper, laminated paper, multilayer composite paper, carton board materials ect.

Technical Parameters:
Specification 1020 1300 1350
Max. Web Width 1020mm 1300mm 1370mm
Max. Printing Width 1000mm 1270mm 1350mm
Printing Repeat 300-1200mm 300-1200mm 300-1200mm
Max.Unwinder Diameter 1524mm 1524mm 1524mm
Max.Rewinder Diameter 1524mm 1524mm 1524mm
Gearing 1/8cp 1/8cp 1/8cp
Max Printing Speed 160-200m/min 160-200m/min 160-200m/min
Diameter of web roller 100mm 100mm 100mm
Drying mode Hot Air Drying/IR Drying/ UV Drying
Printing Material 60-300gsm paper roll

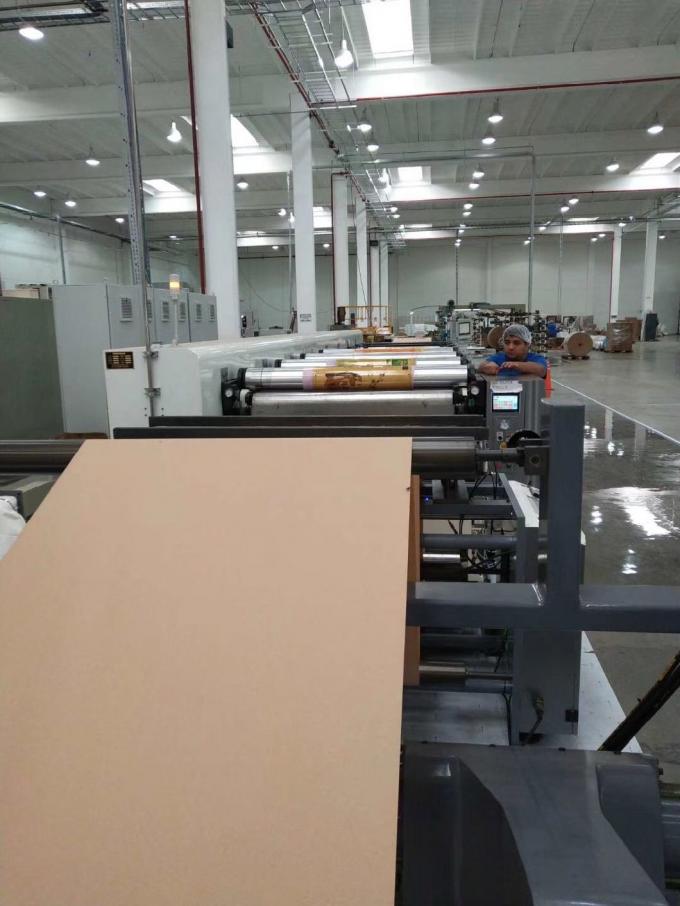

High Speed / High Quality Hot Sale Multi-Color Printing Machine for Paper Cup/ Paper Bag
High Speed / High Quality Hot Sale Multi-Color Printing Machine for Paper Cup/ Paper Bag
High Speed / High Quality Hot Sale Multi-Color Printing Machine for Paper Cup/ Paper Bag
High Speed / High Quality Hot Sale Multi-Color Printing Machine for Paper Cup/ Paper Bag
