Name: Single Faced Flexographic Printing Machine with Advanced Technology and 150m/Min Speed
Brand: Wenzhou Fengming Machinery Co., Ltd.
SKU: FM-B1020
Price: 1800000.00 USD
Availability: InStock

Home > Products > Flexographic Printing Machine >

Single Faced Flexographic Printing Machine with Advanced Technology and 150m/Min Speed

150m/min unit type

150m/min flexographic printing machine 6 color

automatic unit type

Place of Origin:

CHINA

Brand Name:

FENGMING

Certification:

Model Number:

FM-B1020

Request A Quote

Product Details

Model NO.:

FM-B

Dryer:

UV& IR

Type:

Flexo

Embossing Structure:

Rotary Letterpress

Structure:

Unit Type

Application:

Flexible Packaging Printing

Automatic Grade:

Automatic

Printing Speed:

150m/mim

Printer Type:

Flexographic Printing Machine

Product Model:

FM-B

Automatic:

Yes

Speed:

150m/Min

Transport Package:

Main Part With Wooden Pallets

Specification:

Trademark:

Fengming

Origin:

Zhejiang, China

HS Code:

8443160090

Supply Ability:

5 Sets / Month

Printing Page:

Single Faced

Printing Color:

6 Colors

Anilox Roller:

Ceramic Anilox Roller

Customization:

Available | Customized Request

Shipping Cost:

About Shipping Cost And Estimated Delivery Time.

Initial Payment Full Payment

Currency:

US$

Return&refunds:

You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Payment & Shipping Terms

Minimum Order Quantity

Packaging Details

wooden pallet

Delivery Time

30 working days

Payment Terms

T/T, L/C

Supply Ability

10 sets

Auto Tension High Speed Flexo Printing Machine with 300m/min Mechanical Speed

Get Best Price

Video

High Speed 2 Colors Flexographic Printers PET BOPP Flexo Graphic Printing Machine 2 Color Price

Get Best Price

Video

High Speed 2 Colors Flexographic Printers PET Flexo Graphic Printing Machine 2 Color Price

Get Best Price

Video

High Speed 2 Colors Flexographic Printers BOPP Flexo Graphic Printing Machine 2 Color Price

Get Best Price

86-577-63796999

Contact Now

Product Description

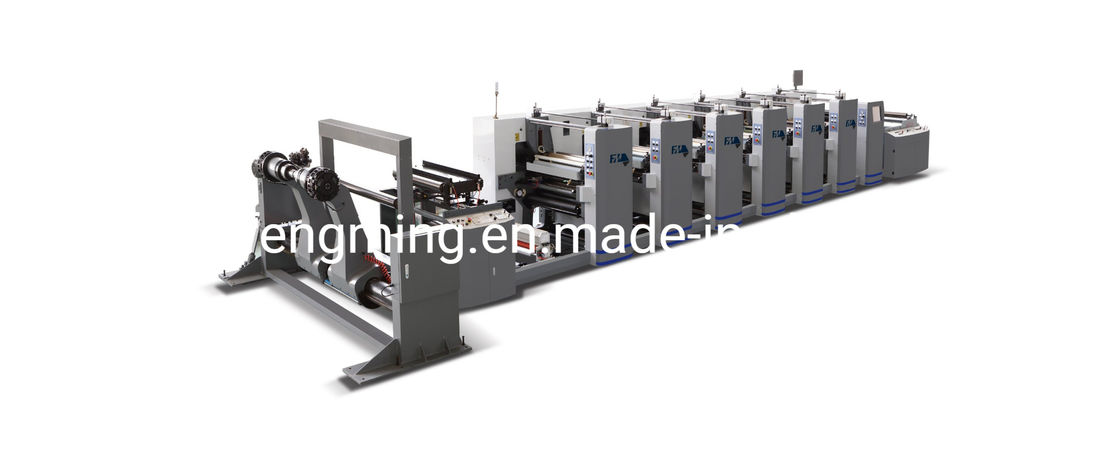

Single Faced Flexographic Printing Machine with Advanced Technology and 150m/Min Speed

Introduction

This machine is a printing machine which adopts flexible photosensitive resin plates, rubber plates as the base material, anilox rollers for transferring ink, liquid ink for printing. It is controlled centrally by PLC system and generally consists of unwinding section, infeed section, printing section, drying section, outfeed section, rewinding section and control section. This machine is an ideal machine for printing paper cup, carton, paper bag, paper package, and so on.

Features

Separate single-station unwinding rollstand with hydraulic lifting device; 3convex-type inflatable shaft for loading material (or shaftless loading); Automatically constant tension controller for unwinding tension control and EPC web guide control system for material alignment; Alarm function for reminding replacing material, stopping-machine device for detecting material broken and dust collection device.
The machine is mainly controlled by inverter-fed motor with synchronization belt.
Double rubber nipper roller is used for paper feeding, whose pressure can be adjusted by pneumatic cylinder; Taper tension control system ensures the color registration accuracy.
Ceramic anilox roller for ink transferring; Single-blade reverse ink-scraping system; Pneumatic clutch pressure for anilox rollers and plate rollers; Color Registration: Y axis (automatic), X axis (manually).
Automatic Preventing Clogging Function: When the machine stops, the anilox roller will rotate to prevent the ink on its surface from drying and blocking holes (meshes) on it.
Double rubber nipper roller is used for paper feeding, whose pressure can be adjusted by pneumatic cylinder; Static picture color detection system (Kesai) is adopted in this section.
Separate single-station rewinding rollstand with hydraulic lifting device; 3convex-type inflatable shaft for loading material (or shaftless loading); Stopping-machine device for detecting material broken.
Separate drying system (electric heating); I. R. Short-wave heating and drying system (the temperature is adjustable); Hot air and natural air drying system including exhaust fan and blower; Hot air recycling system, with adjustable device for in/outfeeding air; Central Exhaust System: Waste gas will be exhausted centrally by exhaust fan.
The whole machine is centrally controlled by PLC system, which has self-diagnosis function and monitors the machine status; The runnning speed can be adjusted at multiple points.

Max. Web Width	1020mm
Max. Printing Width	1000mm
Printing Repeat	286-1200mm
Max. Unwinder Diameter	1524mm
Max. Rewinder Diameter	1524mm
Gearing	1/8cp
Max. Printing Speed	150m/min
Diameter of Web Roller	100mm
Base Motor Power	11kw
Drying Mode	a.Hot Air Drying b.IR Drying
