Unit Type 4/5/6/7/8 Color Flexography CE Approved Flexible Packaging Printing Machine

Unit Type 4/5/6/7/8 Color Flexography CE Approved Flexible Packaging Printing Machine

flexography unit type

flexography flexographic printing machine 6 color

unit type flexographic printing machine 6 color

Place of Origin:

CHINA

Brand Name:

FENGMING

Certification:

CE

Model Number:

FM-B1020

Contact Us
Request A Quote
Unit Type 4/5/6/7/8 Color Flexography CE Approved Flexible Packaging Printing Machine Unit Type 4/5/6/7/8 Color Flexography CE Approved Flexible Packaging Printing Machine Unit Type 4/5/6/7/8 Color Flexography CE Approved Flexible Packaging Printing Machine Unit Type 4/5/6/7/8 Color Flexography CE Approved Flexible Packaging Printing Machine Unit Type 4/5/6/7/8 Color Flexography CE Approved Flexible Packaging Printing Machine Unit Type 4/5/6/7/8 Color Flexography CE Approved Flexible Packaging Printing Machine
Product Details
Model NO.:
FM-B
Structure:
Unit Type
Application:
Flexible Packaging Printing
Automatic Grade:
Automatic
Printing Speed:
150m/mim
Printer Type:
Flexographic Printing Machine
Product Model:
FM-B
Automatic:
Yes
Speed:
150m/Min
Transport Package:
Main Part With Wooden Pallets
Specification:
CE
Trademark:
Fengming
Origin:
Zhejiang, China
HS Code:
8443160090
Supply Ability:
5 Sets / Month
Printing Page:
Single Faced
Printing Color:
6 Colors
Anilox Roller:
Ceramic Anilox Roller
Dryer:
UV& IR
Type:
Flexo
Embossing Structure:
Rotary Letterpress
Customization:
Available | Customized Request
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
wooden pallet
Delivery Time
30 working days
Payment Terms
T/T, L/C
Supply Ability
15 sets
RELATED PRODUCTS
Good price Auto Flexographic Printer, Front Side 9 Colors Back Side 1 Colors Flexo Label Flexographic Printer Printing Press online Video

Auto Flexographic Printer, Front Side 9 Colors Back Side 1 Colors Flexo Label Flexographic Printer Printing Press

Get Best Price
Good price Automatic Flexo Printing Machine Flexographic Printers Flexo Printing Machine Roll To Roll online Video

Automatic Flexo Printing Machine Flexographic Printers Flexo Printing Machine Roll To Roll

Get Best Price
Good price automatic Flexo Printing Machine Plastic Film and Paper label unit type flexo printing machine Colors online Video

automatic Flexo Printing Machine Plastic Film and Paper label unit type flexo printing machine Colors

Get Best Price
Good price FM-CS 1350 Flexo Printing Machine For Paper Plate With Online Video Technical Support online Video

FM-CS 1350 Flexo Printing Machine For Paper Plate With Online Video Technical Support

Get Best Price
Contact Us
86-577-63796999
Contact Now
Product Description

Unit Type 4/5/6/7/8 Color Flexography CE Approved Flexible Packaging Printing Machine

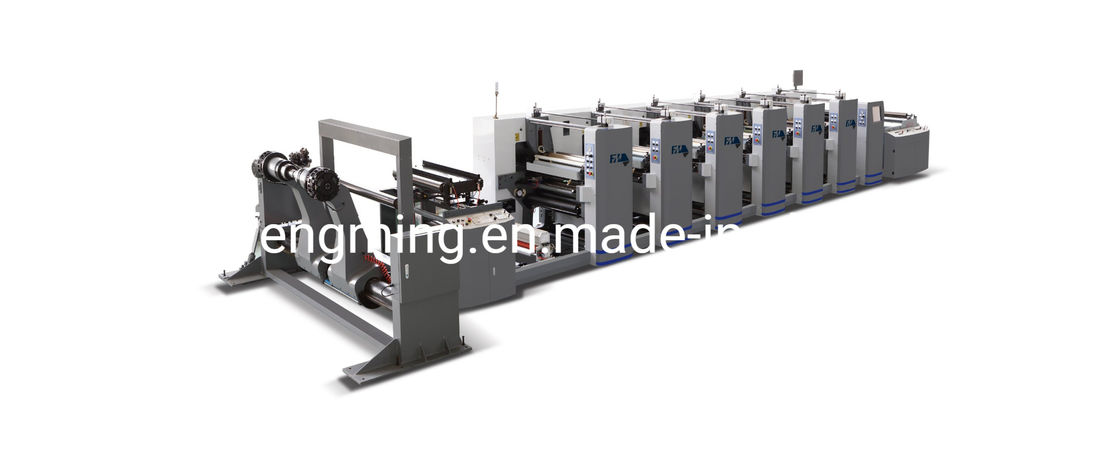

Unit Type 4/5/6/7/8 Color Flexography Printing Machine


Introduction

This machine is a printing machine which adopts flexible photosensitive resin plates, rubber plates as the base material, anilox rollers for transferring ink, liquid ink for printing. It is controlled centrally by PLC system and generally consists of unwinding section, infeed section, printing section, drying section, outfeed section, rewinding section and control section. This machine is an ideal machine for printing paper cup, carton, paper bag, paper package, and so on.



Features

Separate single-station unwinding rollstand with hydraulic lifting device; 3convex-type inflatable shaft for loading material (or shaftless loading); Automatically constant tension controller for unwinding tension control and EPC web guide control system for material alignment; Alarm function for reminding replacing material, stopping-machine device for detecting material broken and dust collection device.
The machine is mainly controlled by inverter-fed motor with synchronization belt.
Double rubber nipper roller is used for paper feeding, whose pressure can be adjusted by pneumatic cylinder; Taper tension control system ensures the color registration accuracy.
Ceramic anilox roller for ink transferring; Single-blade reverse ink-scraping system; Pneumatic clutch pressure for anilox rollers and plate rollers; Color Registration: Y axis (automatic), X axis (manually).
Automatic Preventing Clogging Function: When the machine stops, the anilox roller will rotate to prevent the ink on its surface from drying and blocking holes (meshes) on it.
Double rubber nipper roller is used for paper feeding, whose pressure can be adjusted by pneumatic cylinder; Static picture color detection system (Kesai) is adopted in this section.
Separate single-station rewinding rollstand with hydraulic lifting device; 3convex-type inflatable shaft for loading material (or shaftless loading); Stopping-machine device for detecting material broken.
Separate drying system (electric heating); I. R. Short-wave heating and drying system (the temperature is adjustable); Hot air and natural air drying system including exhaust fan and blower; Hot air recycling system, with adjustable device for in/outfeeding air; Central Exhaust System: Waste gas will be exhausted centrally by exhaust fan.
The whole machine is centrally controlled by PLC system, which has self-diagnosis function and monitors the machine status; The runnning speed can be adjusted at multiple points.

Max. Web Width 1020mm
Max. Printing Width 1000mm
Printing Repeat 286-1200mm
Max. Unwinder Diameter 1524mm
Max. Rewinder Diameter 1524mm
Gearing 1/8cp
Max. Printing Speed 150m/min
Diameter of Web Roller 100mm
Base Motor Power 11kw
Drying Mode a.Hot Air Drying b.IR Drying

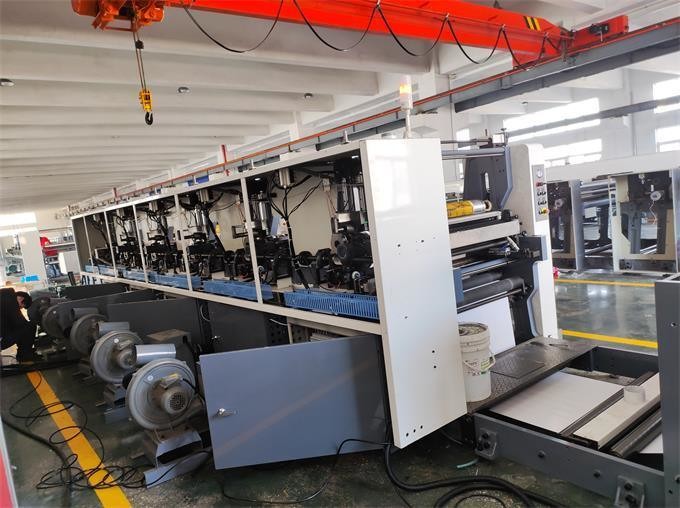

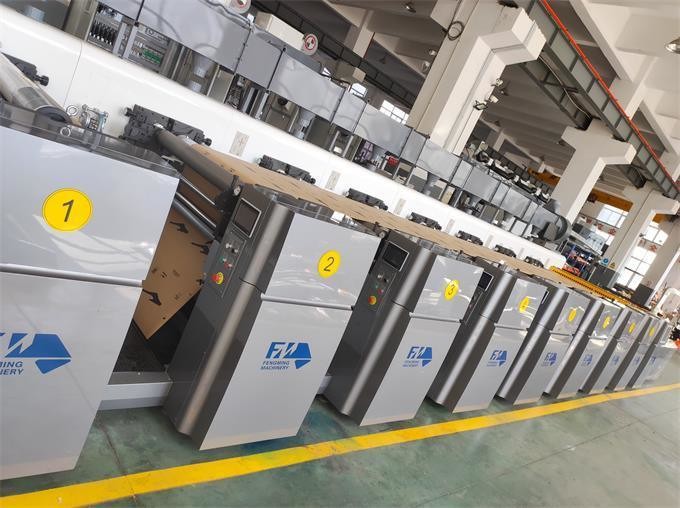

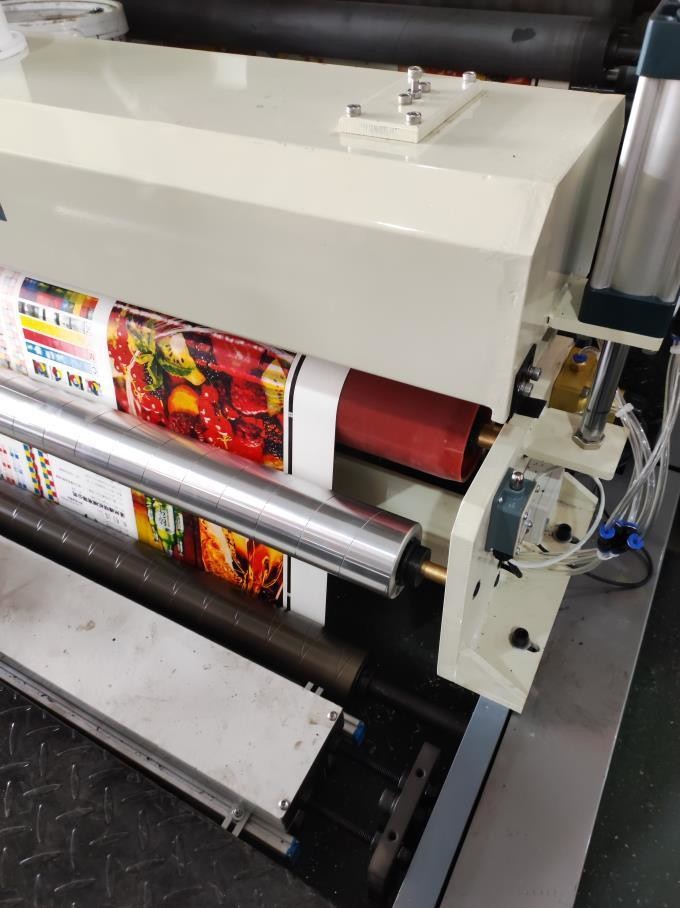

Unit Type 4/5/6/7/8 Color Flexography CE Approved Flexible Packaging Printing Machine 1Unit Type 4/5/6/7/8 Color Flexography CE Approved Flexible Packaging Printing Machine 2Unit Type 4/5/6/7/8 Color Flexography CE Approved Flexible Packaging Printing Machine 3Unit Type 4/5/6/7/8 Color Flexography CE Approved Flexible Packaging Printing Machine 4Unit Type 4/5/6/7/8 Color Flexography CE Approved Flexible Packaging Printing Machine 5Unit Type 4/5/6/7/8 Color Flexography CE Approved Flexible Packaging Printing Machine 6
