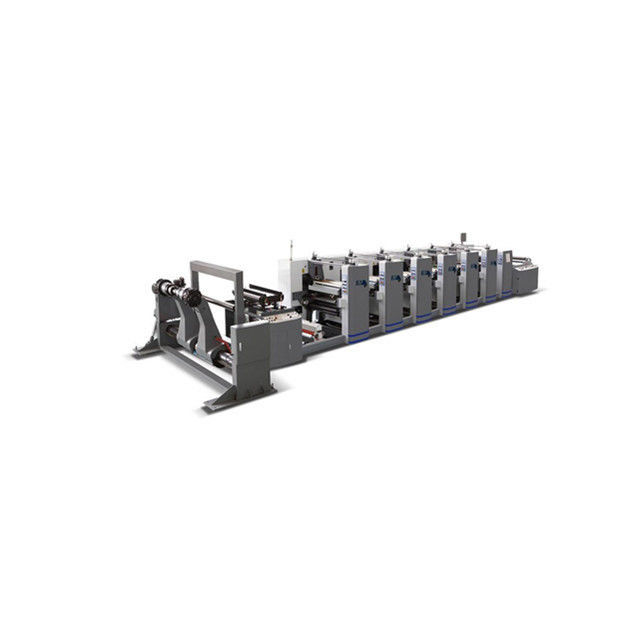

150m/Min Printing Speed Thermal Paper Flexo Printing Machine Automatic Grade Automatic

150m/Min Printing Speed Thermal Paper Flexo Printing Machine Automatic Grade Automatic

150m/min unit type

150m/min flexographic printing machine 6 color

automatic unit type

Place of Origin:

CHINA

Brand Name:

FENGMING

Certification:

CE

Model Number:

FM-B1020

Contact Us
Request A Quote
150m/Min Printing Speed Thermal Paper Flexo Printing Machine Automatic Grade Automatic 150m/Min Printing Speed Thermal Paper Flexo Printing Machine Automatic Grade Automatic 150m/Min Printing Speed Thermal Paper Flexo Printing Machine Automatic Grade Automatic 150m/Min Printing Speed Thermal Paper Flexo Printing Machine Automatic Grade Automatic 150m/Min Printing Speed Thermal Paper Flexo Printing Machine Automatic Grade Automatic 150m/Min Printing Speed Thermal Paper Flexo Printing Machine Automatic Grade Automatic
Product Details
Model NO.:
FM-B1020
Structure:
Unit Type
Application:
Flexible Packaging Printing
Automatic Grade:
Automatic
Printing Speed:
150m/Min
Max. Web Width:
920mm
Max. Printing Width:
900mm
Max. Die-Cutting Width:
900mm
Printing Repeat:
286-1200mm
Die-Cutting Repeat:
286-1200mm
Max. Unwinder Diameter:
1524mm/1200mm
Max. Rewinder Diameter:
1524mm/1200mm
Gearing:
1/8cp
Max. Printing Speed:
150m/Min
Diameter Of Web Roller:
100mm
Transport Package:
Wooden Pallets With Film Package
Specification:
CE
Trademark:
FENGMING
Origin:
Zhejiang, China
HS Code:
8443160090
Supply Ability:
5 Sets / Month
Printing Page:
Single Faced
Printing Color:
4 Colors
Anilox Roller:
Ceramic Anilox Roller
Dryer:
UV& IR
Type:
Flexo Printing
Embossing Structure:
Rotary Letterpress
Customization:
Available | Customized Request
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
wooden pallet
Delivery Time
30 working days
Payment Terms
T/T, L/C
Supply Ability
15 sets
RELATED PRODUCTS
Good price Auto Flexographic Printer, Front Side 9 Colors Back Side 1 Colors Flexo Label Flexographic Printer Printing Press online Video

Auto Flexographic Printer, Front Side 9 Colors Back Side 1 Colors Flexo Label Flexographic Printer Printing Press

Get Best Price
Good price Automatic Flexo Printing Machine Flexographic Printers Flexo Printing Machine Roll To Roll online Video

Automatic Flexo Printing Machine Flexographic Printers Flexo Printing Machine Roll To Roll

Get Best Price
Good price automatic Flexo Printing Machine Plastic Film and Paper label unit type flexo printing machine Colors online Video

automatic Flexo Printing Machine Plastic Film and Paper label unit type flexo printing machine Colors

Get Best Price
Good price FM-CS 1350 Flexo Printing Machine For Paper Plate With Online Video Technical Support online Video

FM-CS 1350 Flexo Printing Machine For Paper Plate With Online Video Technical Support

Get Best Price
Contact Us
86-577-63796999
Contact Now
Product Description

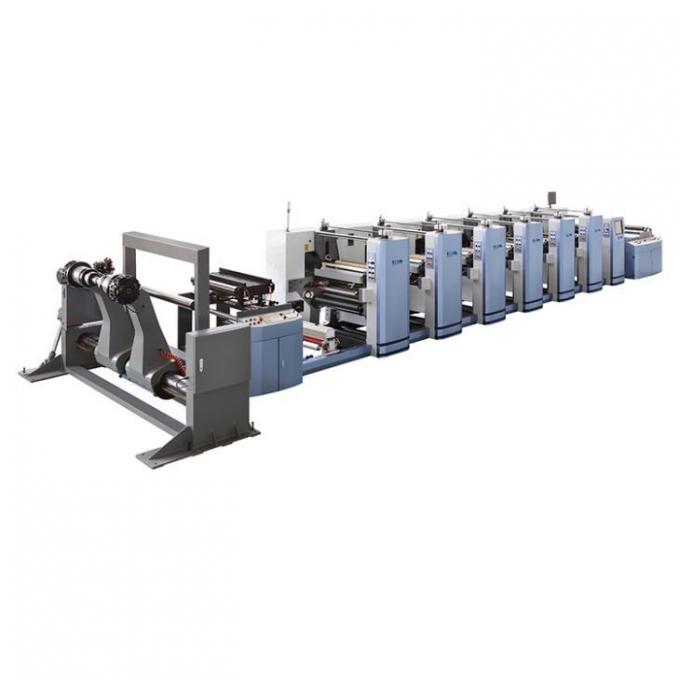

150m/Min Printing Speed Thermal Paper Flexo Printing Machine Automatic Grade Automatic

150m/Min Printing Speed Thermal Paper Flexo Printing Machine Automatic Grade Automatic 0

We are Flexo Press!


FM-B920 Flexo Printing Machine




Application Object:

Suitable for eco-friendly packaging such as paper cup, paper box, pre-printing carton for food/housing, milk package and wall paper printing etc.

Paper used:

Kraft paper, carton board material, coated paper, liner paper, laminated paper, wall paper, nonwoven etc.

Medium-Range Flexographic Press

Specification 35.5"(900) 39.5"(1000) 47.5"(1200)
Max. web width 920mm 1020mm 1220mm
Max. printing width 900mm 1000mm 1200mm
Printing repeat                                        286-1200mm
Max. printing speed                                          150m/min
Max. unwinder/rewinder diameter                                   1524mm/1200mm
Drying mode               a. warm drying b. IR drying c. UV drying
Ink used                         Water-based ink or UV ink
Power supply                               3 phase 380V 50Hz
Suitable material      Light weight coated paper, carton board materials, kraft paper, chrome paper, PVC wall paper, laminated paper, white cardboard paper, aluminium-foil paper


Wide-Range Flexographic Press

Specification       50.4"(1330)      56.5"(1430)       64.2"(1630)    72.0"(1830)
Max. web width      1350mm       1450mm       1650mm     1850mm
Max. printing width      1330mm       1430mm       1630mm     1830mm
Printing repeat                                                600-1600mm
Max. printing speed                                                  150m/min
Max. unwinder /
rewinder diameter		                                                    1524mm
Drying mode                             a. warm drying b. IR drying c. UV drying
Ink used                                    Water-based ink or UV ink
Power supply                                         3 phase 380V 50Hz
Suitable material                             17g copy paper, cotton paper, 40-450g paper,                                 aluminium-foil paper, BOPP, PET, paper board, kraft paper

Main characteristics:

1. Capable of inline cleaning dust, printing, and cutting
2. Eco-friendly printing, water based ink and UV ink used
3. Metal anilox rollers can be used for a long time, and can supply ink appropriately.
4. Warm drying, IR drying, UV drying are available
5. Closed loop tension control is used to make printing tension much more stable , and register much more accurate.
6. Automatically electronic web-guide system
7. Online printing register detection
8.Register system can be operated automatically or by manual.

Our service:

Top quality, competitive price, timely del;ivery and heart-to-heart service.

Delivery: About 60 days after receiving 30% deposit by T/T.

Warrantee: One year guarantee, life-long maintence.

FAQ


1, Q: How about the after service?
A: We have a strong team, special for after service. We can arrange engineers to do service for you.

2, Q: Are you factory or trading company?
A: Professional manufacturer of flexo printing machine. We are definitely factory.

3, Q: Where is your factory located? How can I visit there?
A:Our factory is located in Pingyang Wenzhou City, Zhejiang Province, China, near to the Wenzhou airport. You can fly to Wenzhou airport directly.

4, Q:How does your factory do regarding quality control?
A:Quality is priority. We always attach great importance to quality controlling from the very beginning.

5, Q: why choose Fengming Machinery?
A: Our qualified products and service have enabled us to expand our market     from China to more than 40 countries. We are confident that you will be satisfied with our machines.

Welcome to visit Fengming Machinery!
