Place of Origin:
CHINA
Brand Name:
FENGMING
Certification:
CE
Model Number:
FM-B1020
Video
Video

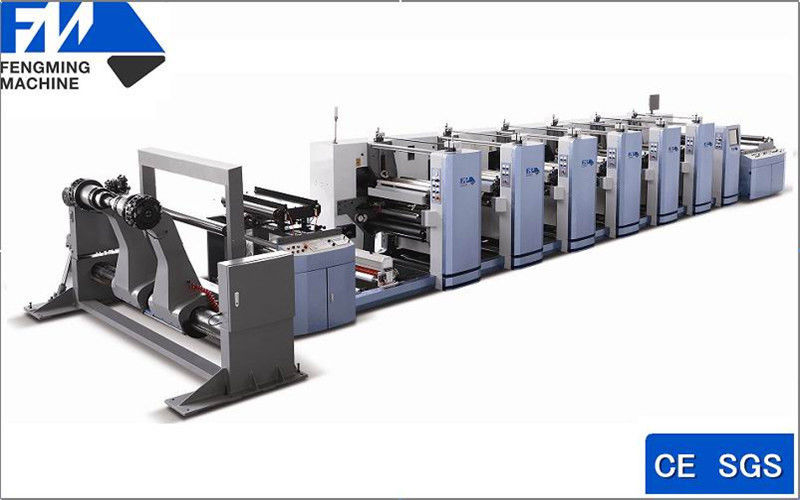

Max. 1830mm High Speed Flexo Printing Machine for Paper Carton 150m/mim Printing Speed
We are Flexo Press!
Multicolors High Speed Flexographic Printing Machine
Application:
High Speed Flexo Printing Machine is a flexo printing machine which adopts flexible photosensitive resin plates,rubber plates as the base material, anilox rollers for transferring ink,liquid ink for printing. It is controlled centrally by PLC system and generally consists of unwinding section, infeed section,printing section, drying section, outfeed section, rewinding section and control section.This machine is an ideal machine for printing paper cup, carton, paper bag, paper package, and so on.
Medium-Range Flexographic Press
| Specification | 35.5"(900) | 39.5"(1000) | 47.5"(1200) |
| Max. web width | 920mm | 1020mm | 1220mm |
| Max. printing width | 900mm | 1000mm | 1200mm |
| Printing repeat | 286-1200mm | ||
| Max. printing speed | 150m/min | ||
| Max. unwinder/rewinder diameter | 1524mm/1200mm | ||
| Drying mode | a. warm drying b. IR drying c. UV drying | ||
| Ink used | Water-based ink or UV ink | ||
| Power supply | 3 phase 380V 50Hz | ||
| Suitable material | Light weight coated paper, carton board materials, kraft paper, chrome paper, PVC wall paper, laminated paper, white cardboard paper, aluminium-foil paper | ||
| Specification | 50.4"(1330) | 56.5"(1430) | 64.2"(1630) | 72.0"(1830) |
| Max. web width | 1350mm | 1450mm | 1650mm | 1850mm |
| Max. printing width | 1330mm | 1430mm | 1630mm | 1830mm |
| Printing repeat | 600-1600mm | |||
| Max. printing speed | 150m/min | |||
| Max. unwinder / rewinder diameter | 1524mm | |||
| Drying mode | a. warm drying b. IR drying c. UV drying | |||
| Ink used | Water-based ink or UV ink | |||
| Power supply | 3 phase 380V 50Hz | |||
| Suitable material | 17g copy paper, cotton paper, 40-450g paper, aluminium-foil paper, BOPP, PET, paper board, kraft paper | |||
