Place of Origin:
CHINA
Brand Name:
FENGMING
Certification:
CE
Model Number:
FM-B1020
Video
Video

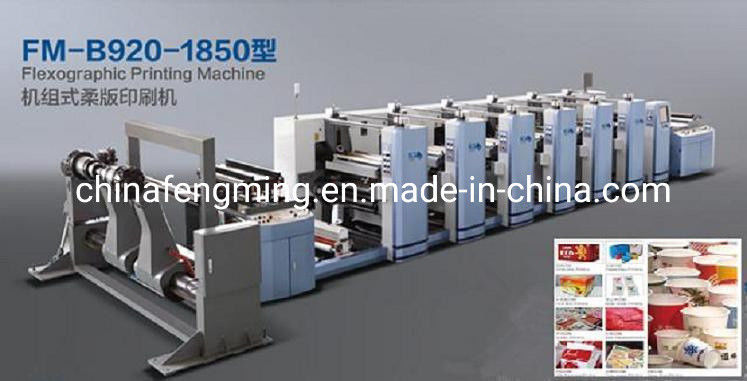

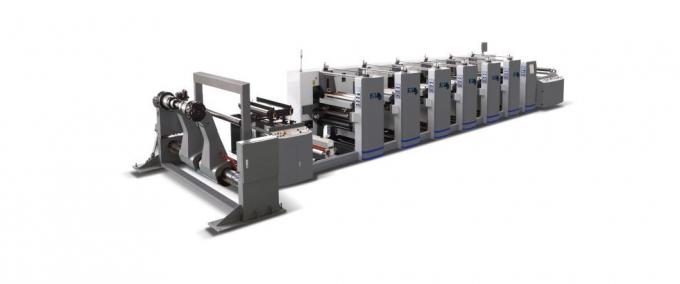

Max. Web Width 920/1020/1220mm FM-B 920-1850 Flexographic Printing Machine for Paper Cup
Flexographic Printing Machine for Paper Cup
Main Characteristics
1. Capable of inline cleaning dust, printing and slitting
2. Use water based ink and UV ink
3. Ceramic anilox roller can be used for a long time, and can supply ink appropriately
4. Warm drying, IR drying, UV drying are available
5. Closed loop tension control is used to make printing tension much more stable,and register much more acurate.
6. Automaticlly eletronic web-guide system
7. Onlune printing register detection
8. Register system can be operated automatically or by manpower
Application Object

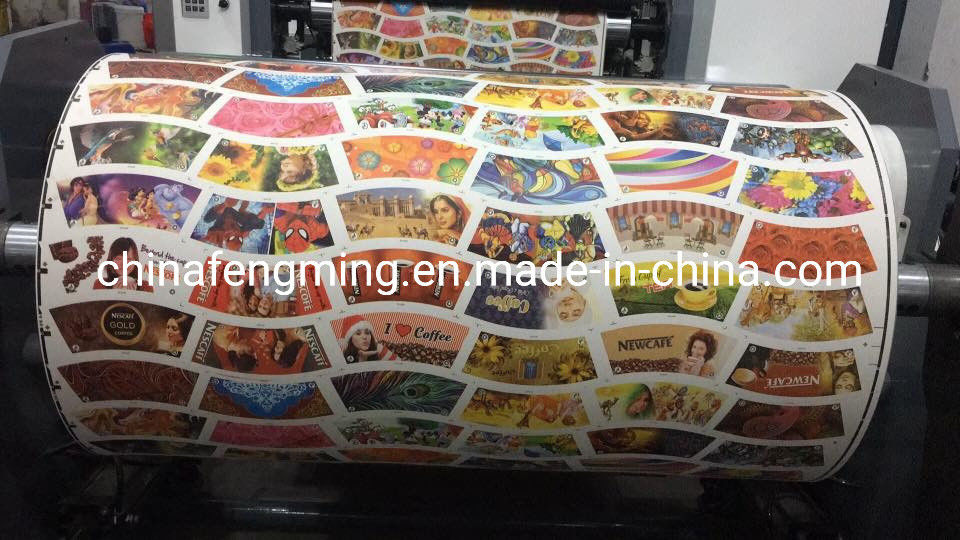

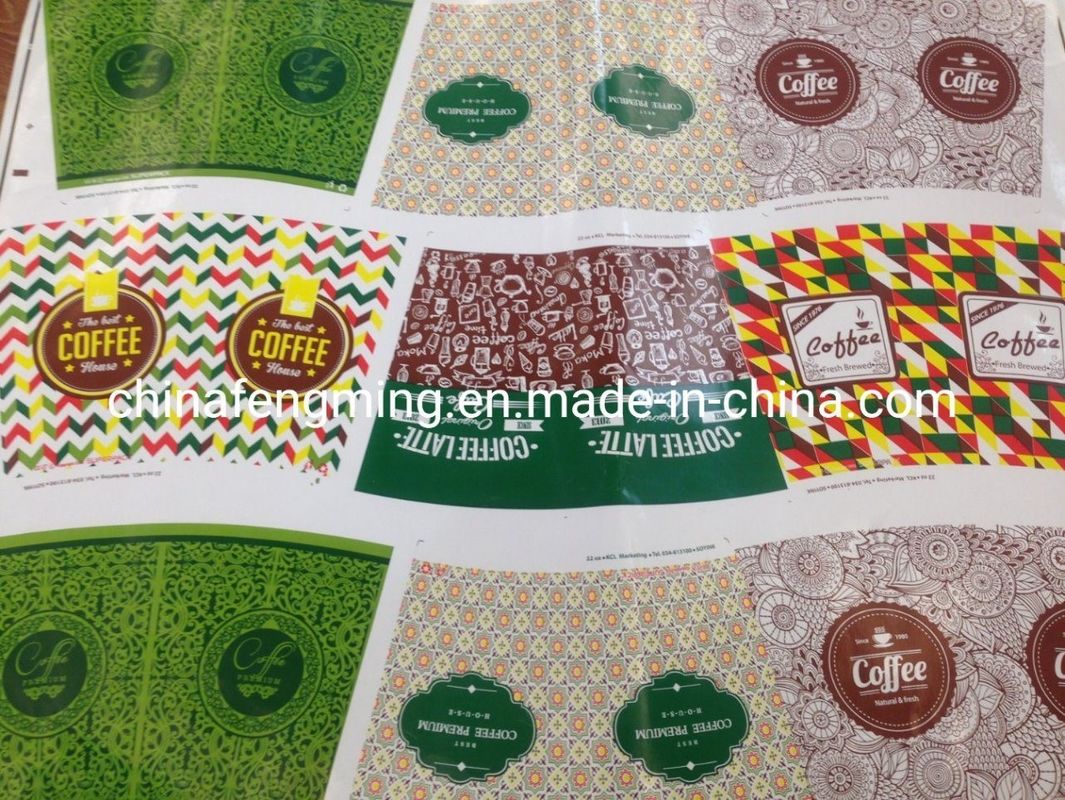

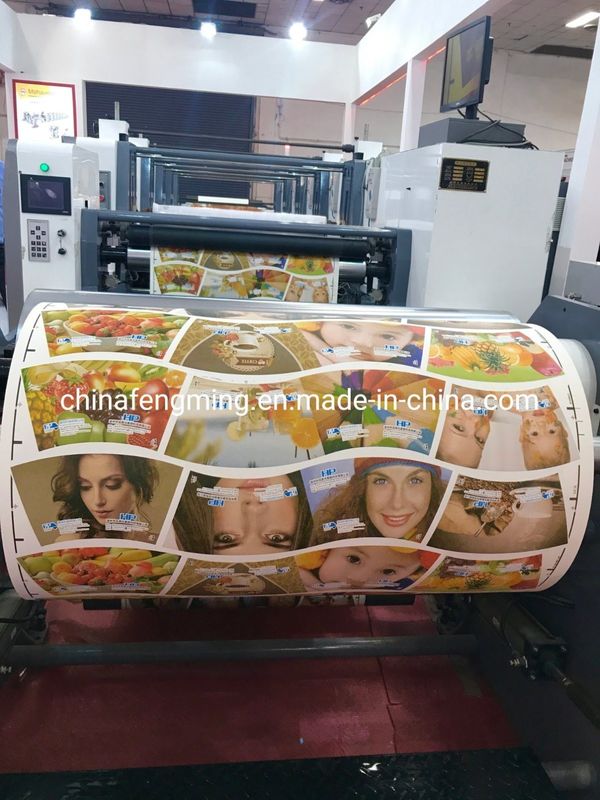

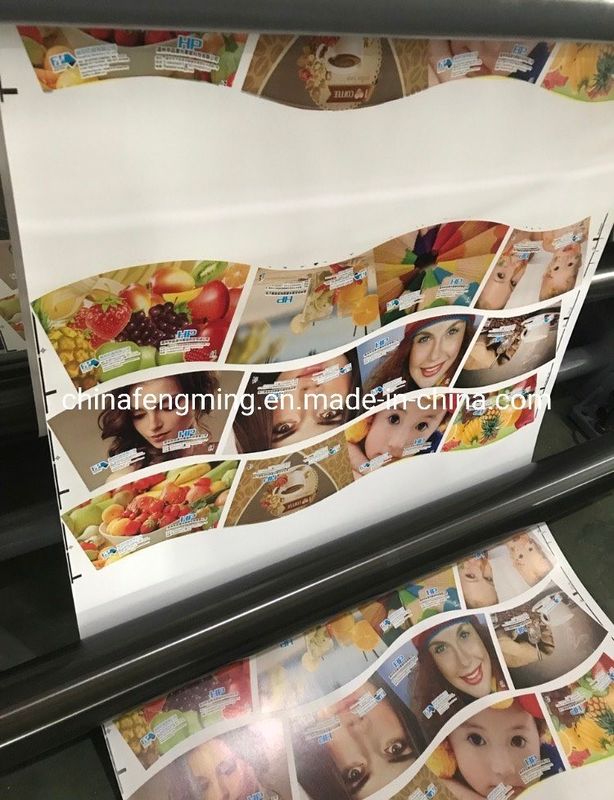

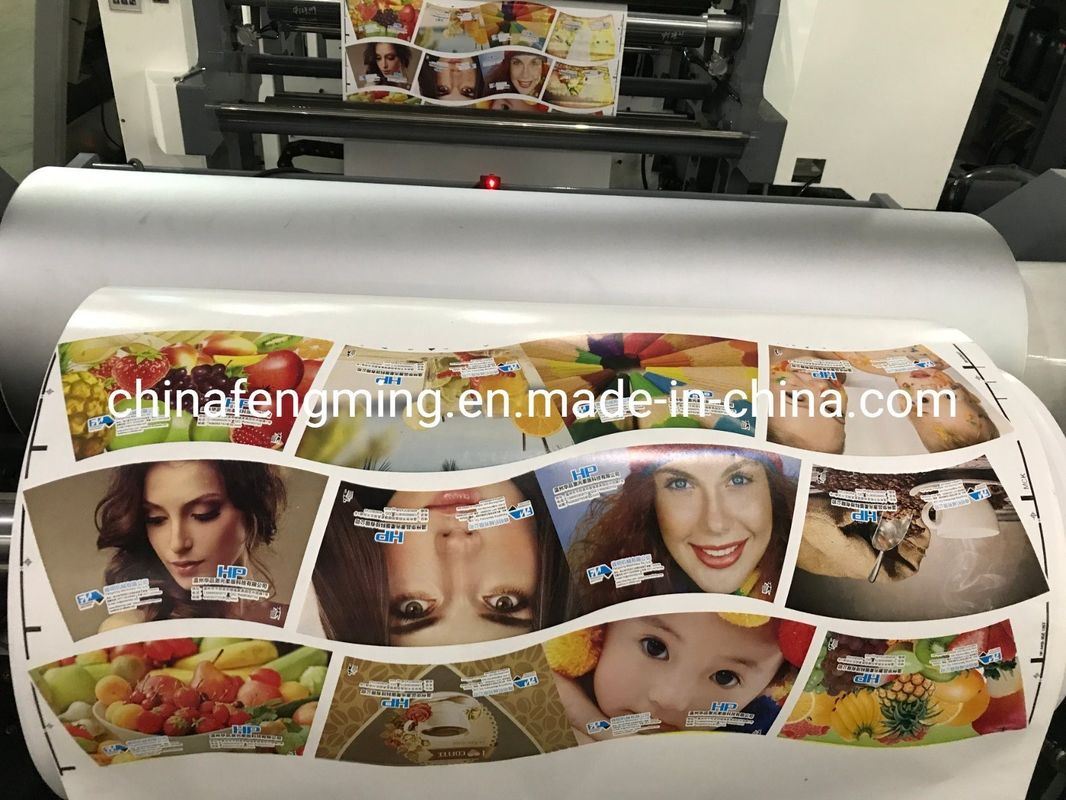

Suitable for eco-friendly packaging, such as the pre-priting carton of paper bag, paper box, paper cup used for food, medicine use
Paper Used
Paper used: kraft paper, carton board meterials, coated paper, liner paper, laminated paper, nonwoven paper.
Technical Parameters
| Specification | 35.5''(900) | 39.5''(1000) | 47.5''(1200) |
| Max.Web Width | 920mm | 1020mm | 1220mm |
| Max.Printing Width | 900mm | 1000mm | 1200mm |
| Max Die-Cutting Width | 900mm | 1000mm | 1200mm |
| Printing Repeat | 286--1200mm | 286--1200mm | 286--1200mm |
| Die-cutting Repeat | 286--1200mm | 286--1200mm | 286--1200mm |
| Max.Unwinder Diameter | 1524mm/1200mm | 1524mm/1200mm | 1524mm/1200mm |
| Max.Rewinder Diameter | 1524mm/1200mm | 1524mm/1200mm | 1524mm/1200mm |
| Gearing | 1/8cp | 1/8cp | 1/8cp |
| Max Printing Speed | 150m/min | 150m/min | 150m/min |
| Diameter of web roller | 100mm | 100mm | 100mm |
| Base motor power | 15kw-22kw | 15kw-22kw | 15kw-22kw |
| Drying mode | Hot air Drying/IR Drying/ UV Drying | ||
| Oil used | Aqueous ink/ UV Ink | ||
| Power Requirement | 380V 3PH 50Hz | ||
| Substrate | 17g copy paper, cotton paper, 80-450g chrome paper, aluminum-foil paper, BOPP,PET,paper board, kraft paper | ||
| Specification | 50.4''(1330) | 56.5''(1430) | 64.2''(1630) | 72.0''(1830) |
| Max.Web Width | 1350mm | 1450mm | 1650mm | 1850mm |
| Max.Printing Width | 1330mm | 1430mm | 1630mm | 1830mm |
| Max Die-Cutting Width | 1280mm | 1430mm | 600-1600mm | 1830mm |
| Printing Repeat | 600-1600mm | 600-1600mm | 600-1600mm | 600-1600mm |
| Die-cutting Repeat | 600-1600mm | 600-1600mm | 600-1600mm | 600-1600mm |
| Max.Unwinder Diameter | 1524mm | 1524mm | 1524mm | 1524mm |
| Max.Rewinder Diameter | 1524mm | 1524mm | 1524mm | 1524mm |
| Gearing | 1/8cp | 1/8cp | 1/8cp | 1/8cp |
| Max Printing Speed | 150m/min | 150m/min | 150m/min | 150m/min |
| Diameter of web roller | 100mm | 100mm | 100mm | 100mm |
| Base motor power | 22kw-30kw | 22kw-30kw | 22kw-30kw | 22kw-30kw |
| Drying mode | Warm Drying/IR Drying/ UV Drying | |||
| Oil used | Aqueous ink/ UV Ink | |||
| Power Requirement | 380V 3PH 50Hz | |||
| Substrate | 17g copy paper, cotton paper, 80-450g chrome paper, aluminum-foil paper, BOPP,PET,paper board, kraft paper | |||
