Name: Paper Logo Printing Machine with Automatic Grade Automatic Printing Speed 150m/mim
Brand: Wenzhou Fengming Machinery Co., Ltd.
SKU: FM-B1020
Price: 1800000.00 USD
Availability: InStock

Home > products > Flexographic Printing Machine >

Paper Logo Printing Machine with Automatic Grade Automatic Printing Speed 150m/mim

automatic unit type

automatic flexographic printing machine 6 color

3ph unit type

Place of Origin:

CHINA

Brand Name:

FENGMING

Certification:

Model Number:

FM-B1020

Request A Quote

Product Details

Model NO.:

FM-B 920-1320

Structure:

Unit Type

Application:

Flexible Packaging Printing

Automatic Grade:

Automatic

Printing Speed:

150m/mim

Max. Web Width:

920mm

Max. Printing Width:

900mm

Printing Repeat Length:

286-1200mm

Max. Unwinder/Rewinder Diameter:

1524mm

Gearing:

1/8 Cp

Max. Printing Speed:

150m/Min

Diameter Of Web Roller:

100mm

Main Motor Power:

11kw

Drying Mode:

Hot Air Drying & IR Drying

Ink Used:

Water Based Ink

Power Supply:

380V 3pH 50Hz

Printing Material:

60-350GSM Paper Roll

Transport Package:

With Wooden Pallet Packing

Specification:

Trademark:

Fengming

Origin:

Zhejiang, China

HS Code:

8443160090

Supply Ability:

10 Sets / Month

Printing Page:

Single Faced

Printing Color:

4 Colors

Anilox Roller:

Ceramic Anilox Roller

Dryer:

UV& IR

Type:

Flexo

Embossing Structure:

Rotary Letterpress

Customization:

Available | Customized Request

Payment & Shipping Terms

Minimum Order Quantity

Packaging Details

wooden pallet

Delivery Time

30 working days

Payment Terms

T/T, L/C

Supply Ability

15 sets

Auto Flexographic Printer, Front Side 9 Colors Back Side 1 Colors Flexo Label Flexographic Printer Printing Press

Get Best Price

Video

Automatic Flexo Printing Machine Flexographic Printers Flexo Printing Machine Roll To Roll

Get Best Price

Video

automatic Flexo Printing Machine Plastic Film and Paper label unit type flexo printing machine Colors

Get Best Price

Video

FM-CS 1350 Flexo Printing Machine For Paper Plate With Online Video Technical Support

Get Best Price

86-577-63796999

Contact Now

Product Description

Paper Logo Printing Machine with Automatic Grade Automatic Printing Speed 150m/mim

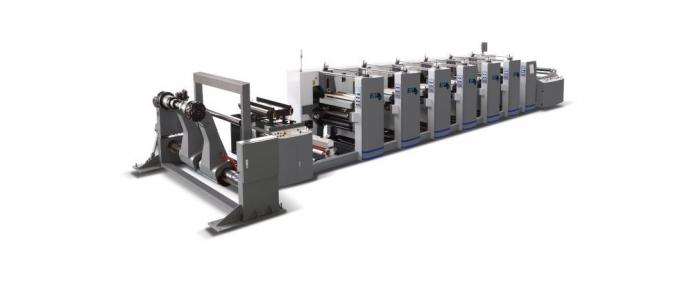

FM-B650-1320 MODEL FLEXOGRAPHIC PRINTING MACHINE

Paper Logo Printing Machine

Application Object
Suitable for eco-friendly packaging, such as the paper bag used for food and healthcare industry, paper box, paper cup, the pre-printing carton of paper bag, bag courier, milk carton medicine use.

Paper Used
Kraft paper, paperboard, coated paper, liner paper, laminated paper, multilayer composite paper, carton board materials ect.

Technical Parameters:

Specification	1020	1300	1350
Max. Web Width	1020mm	1300mm	1350mm
Max. Printing Width	1000mm	1270mm	1320mm
Printing Repeat	286-1200mm	286-1200mm	286-1200mm
Max.Unwinder Diameter	1524mm	1524mm	1524mm
Max.Rewinder Diameter	1524mm	1524mm	1524mm
Gearing	1/8cp	1/8cp	1/8cp
Max Printing Speed	150m/min	150m/min	150m/min
Diameter of web roller	100mm	100mm	100mm
Drying mode	Hot air Drying/IR Drying/ UV Drying
Substrate	80-400g chrome paper, aluminum-foil paper, BOPP, paper board, kraft paper.
