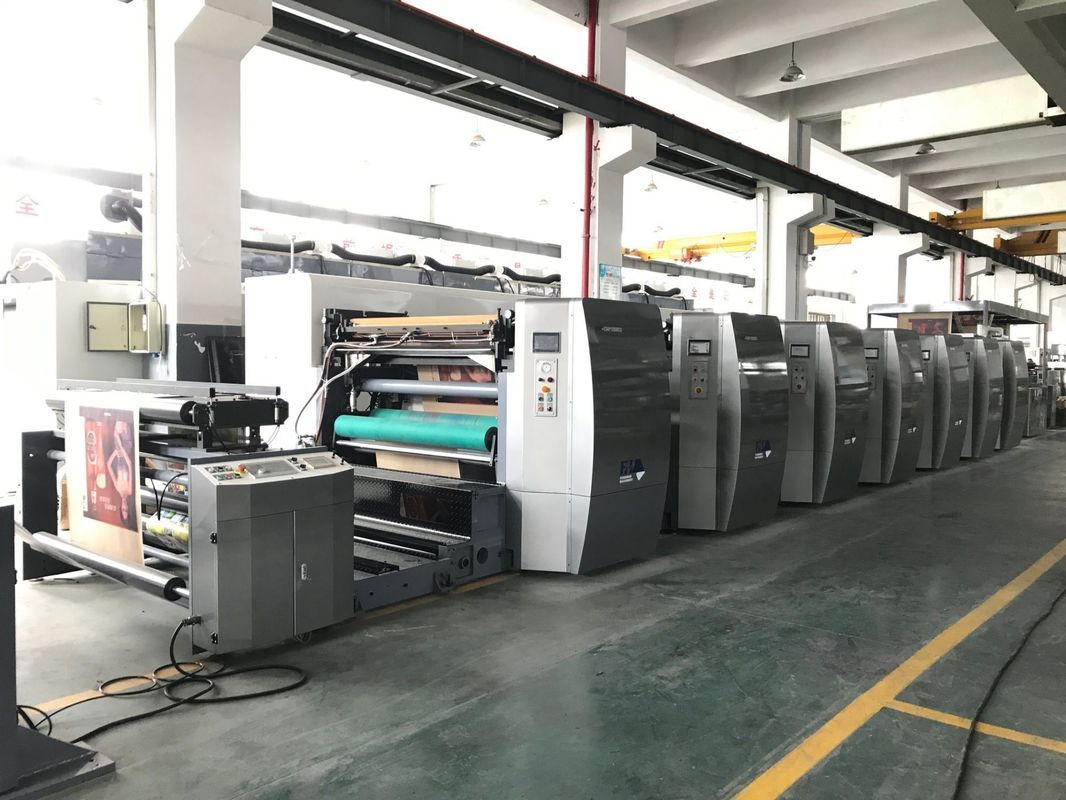

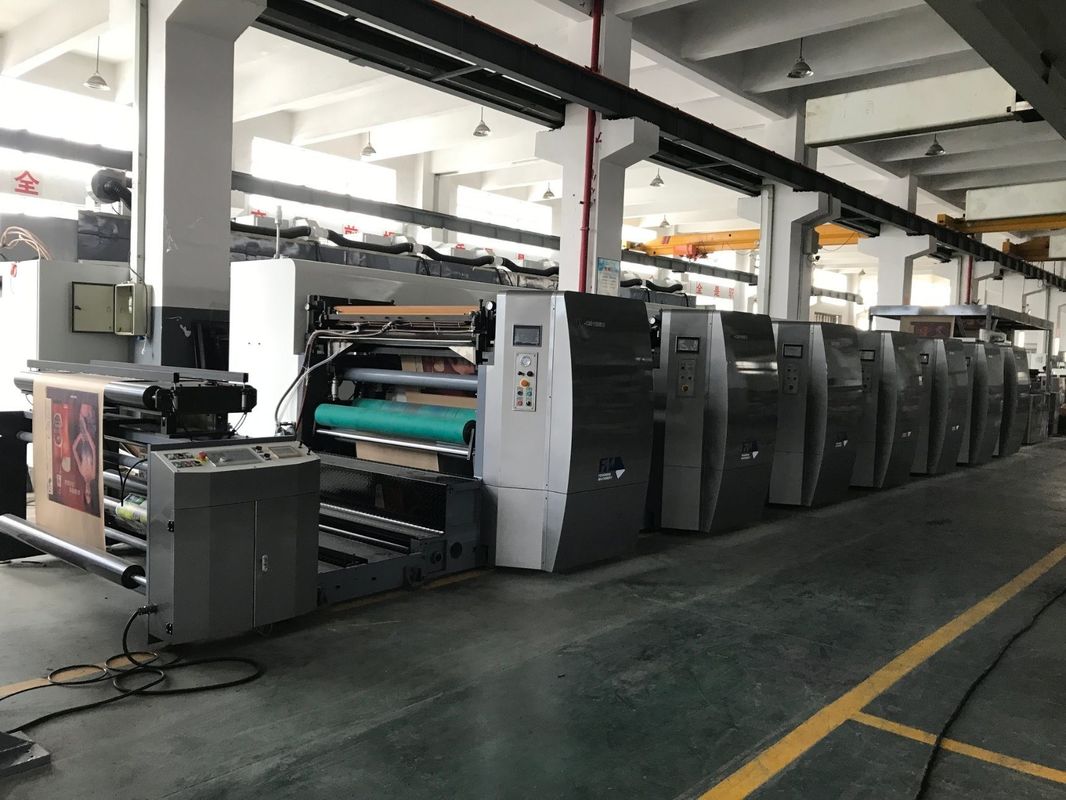

Water Based Ink Petal Type High Speed Flexo Printing Machine for 60-400GSM Paper

Water Based Ink Petal Type High Speed Flexo Printing Machine for 60-400GSM Paper

petal type unit type

petal type flexographic printing machine 6 color

high speed unit type

Place of Origin:

CHINA

Brand Name:

FENGMING

Certification:

CE

Model Number:

FM-C1450

Contact Us
Request A Quote
Water Based Ink Petal Type High Speed Flexo Printing Machine for 60-400GSM Paper Water Based Ink Petal Type High Speed Flexo Printing Machine for 60-400GSM Paper Water Based Ink Petal Type High Speed Flexo Printing Machine for 60-400GSM Paper Water Based Ink Petal Type High Speed Flexo Printing Machine for 60-400GSM Paper
Product Details
Model NO.:
FM-C
Structure:
Unit Type
Application:
Flexible Packaging Printing
Automatic Grade:
Automatic
Printing Speed:
200m/min
Max. Web Width:
1450/1650/1850/2250mm
Max. Printing Width:
1430/1630/1830/2200mm
Printing Repeat Length:
600-1600mm
Max. Unwinder & Rewinder Diameter:
1524mm
Gearing:
1/8 Cp
Max. Printing Speed:
160-220m/Min
Diameter Of Web Roller:
100mm
Drying Mode:
Hot Air + IR Drying ( UV Drying Optional )
Ink Used:
Water Based Ink
Power Supply:
380V 3pH 50Hz
Printing Material:
60-400GSM Paper Roll
Transport Package:
Wooden Pallet With Film Package
Specification:
CE
Trademark:
Fengming
Origin:
Zhejiang, China
HS Code:
8443160090
Supply Ability:
5 Sets/Month
Printing Page:
Single Faced
Printing Color:
6 Colors
Anilox Roller:
Ceramic Anilox Roller
Dryer:
UV& IR
Type:
Flexo Printing
Embossing Structure:
Rotary Letterpress
Customization:
Available | Customized Request
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
wooden pallet
Delivery Time
30 working days
Payment Terms
T/T, L/C
Supply Ability
15 sets
RELATED PRODUCTS
Good price Auto Flexographic Printer, Front Side 9 Colors Back Side 1 Colors Flexo Label Flexographic Printer Printing Press online Video

Auto Flexographic Printer, Front Side 9 Colors Back Side 1 Colors Flexo Label Flexographic Printer Printing Press

Get Best Price
Good price Automatic Flexo Printing Machine Flexographic Printers Flexo Printing Machine Roll To Roll online Video

Automatic Flexo Printing Machine Flexographic Printers Flexo Printing Machine Roll To Roll

Get Best Price
Good price automatic Flexo Printing Machine Plastic Film and Paper label unit type flexo printing machine Colors online Video

automatic Flexo Printing Machine Plastic Film and Paper label unit type flexo printing machine Colors

Get Best Price
Good price FM-CS 1350 Flexo Printing Machine For Paper Plate With Online Video Technical Support online Video

FM-CS 1350 Flexo Printing Machine For Paper Plate With Online Video Technical Support

Get Best Price
Contact Us
86-577-63796999
Contact Now
Product Description

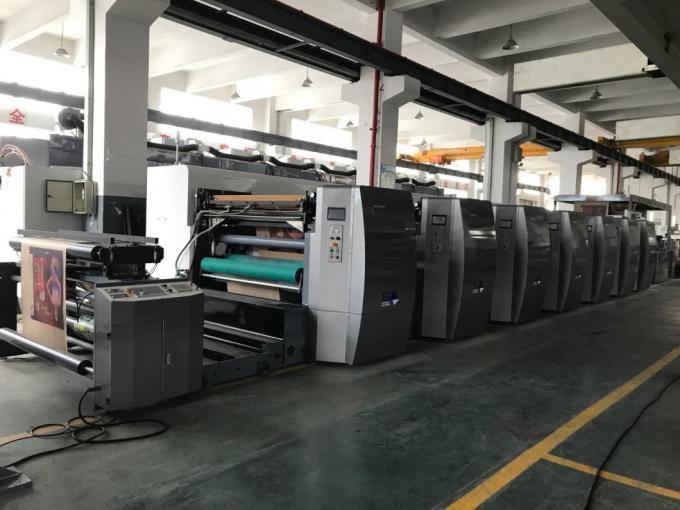

Water Based Ink Petal Type High Speed Flexo Printing Machine for 60-400GSM Paper

Petal Type High Speed Flexo Printing Machine for Paper

Petal Type High Speed Flexo Printing Machine for Paper

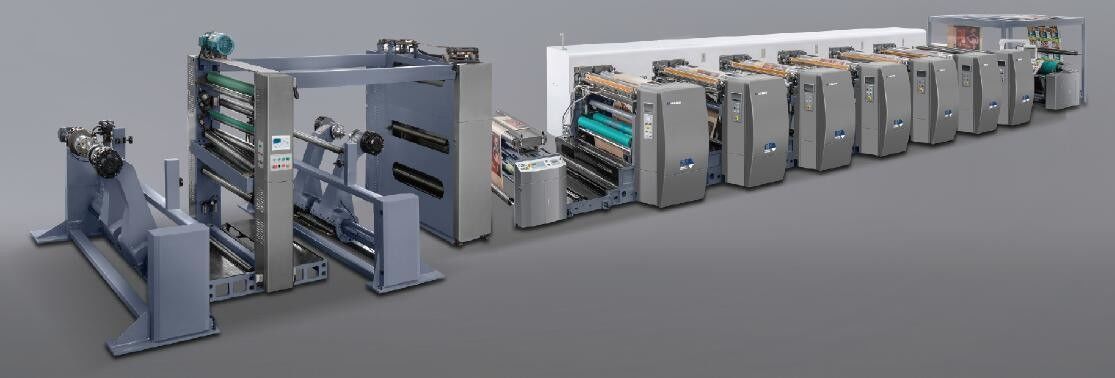

FM-C1450-2250 Flexographic Printing Machine(Petal Type)

  1. Petal type plate mounting, anilox and cylinder with quick change structure.
  2. Printing unit easy operation, cylinder and anilox pressing once successfuly.
  3. Plate full servo shaftless transmission, automatically pre-print, time saving & material saving.
  4. Registering remains the same during lifting process.

Application Object
Suitable for eco-friendly packaging, such as the paper bag used for food and healthcare industry, paper box, paper cup, the pre-printing carton of paper bag, bag courier, milk carton medicine use.

Paper Used
Kraft paper, paperboard, coated paper, liner paper, laminated paper, multilayer composite paper, carton board materials ect.

Technical Parameters:
Specification 1450 1650 1850 2250
Max. Web Width 1450mm 1650mm 1850mm 2250mm
Max. Printing Width 1430mm 1630mm 1830mm 2200mm
Max Die-Cutting Width 1430mm 1630mm 1830mm 2200mm
Printing Repeat 600-1600mm 600-1600mm 600-1600mm 600-1600mm
Max.Unwinder Diameter 1524mm 1524mm 1524mm 1524mm
Max.Rewinder Diameter 1524mm 1524mm 1524mm 1524mm
Gearing 1/8cp 1/8cp 1/8cp 1/8cp
Max Printing Speed 160-220m/min 160-220m/min 160-220m/min 160-220m/min
Diameter of web roller 100mm 100mm 100mm 100mm
Drying mode Warm Drying/IR Drying/ UV Drying
Oil used Aqueous ink/ UV Ink
Power Requirement 380V 3PH 50Hz
Substrate 17g copy paper, cotton paper, 80-450g chrome paper, aluminum-foil paper, BOPP, PET, paper board, kraft paper

Petal Type High Speed Flexo Printing Machine for Paper

Petal Type High Speed Flexo Printing Machine for Paper
