Fully Automatic Kraft Paper Flexo Printer with Water Based Ink 6 Colors Petal Type

Fully Automatic Kraft Paper Flexo Printer with Water Based Ink 6 Colors Petal Type

automatic flexo printer

automatic flexo printing press

6 colors flexo printer

Place of Origin:

China

Brand Name:

Fengming

Certification:

CE certification

Model Number:

FM-C1450-2250

Contact Us
Request A Quote
Fully Automatic Kraft Paper Flexo Printer with Water Based Ink 6 Colors Petal Type Fully Automatic Kraft Paper Flexo Printer with Water Based Ink 6 Colors Petal Type Fully Automatic Kraft Paper Flexo Printer with Water Based Ink 6 Colors Petal Type Fully Automatic Kraft Paper Flexo Printer with Water Based Ink 6 Colors Petal Type Fully Automatic Kraft Paper Flexo Printer with Water Based Ink 6 Colors Petal Type Fully Automatic Kraft Paper Flexo Printer with Water Based Ink 6 Colors Petal Type
Product Details
Model NO.:
FM-C1450-2250
Ink Used:
Water Based Ink
Printing Page:
Single Faced
Printing Color:
6 Colors
Dryer:
UV& IR
Timer:
24-hour
Auto Restart:
Yes
Warranty:
1 Year Limited
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Standard export wooden pallet with film package.
Delivery Time
25 days
Payment Terms
L/C, T/T
Supply Ability
10 Sets/month
RELATED PRODUCTS
Good price Auto Flexographic Printer, Front Side 9 Colors Back Side 1 Colors Flexo Label Flexographic Printer Printing Press online Video

Auto Flexographic Printer, Front Side 9 Colors Back Side 1 Colors Flexo Label Flexographic Printer Printing Press

Get Best Price
Good price Automatic Flexo Printing Machine Flexographic Printers Flexo Printing Machine Roll To Roll online Video

Automatic Flexo Printing Machine Flexographic Printers Flexo Printing Machine Roll To Roll

Get Best Price
Good price automatic Flexo Printing Machine Plastic Film and Paper label unit type flexo printing machine Colors online Video

automatic Flexo Printing Machine Plastic Film and Paper label unit type flexo printing machine Colors

Get Best Price
Good price FM-CS 1350 Flexo Printing Machine For Paper Plate With Online Video Technical Support online Video

FM-CS 1350 Flexo Printing Machine For Paper Plate With Online Video Technical Support

Get Best Price
Contact Us
86-577-63796999
Contact Now
Product Description

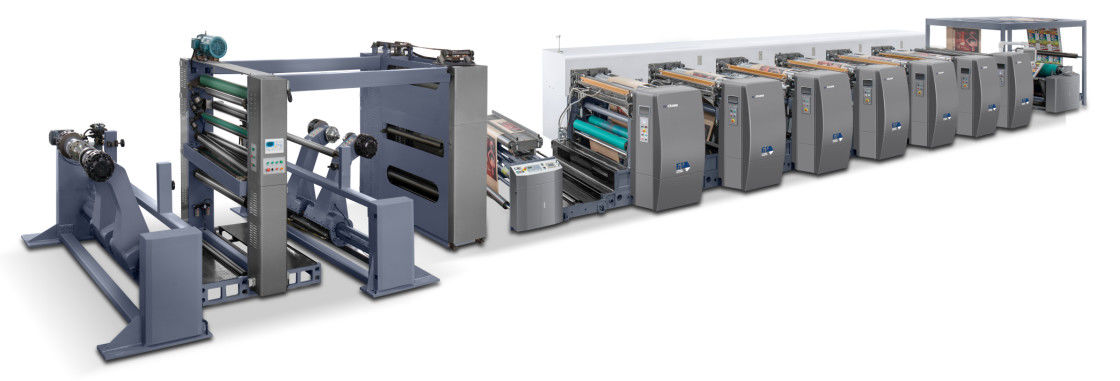

Fully Automatic Kraft Paper Flexo Printer with Water Based Ink 6 Colors Petal Type


Fully Automatic Kraft Paper Flexo Printer with Water Based Ink 6 Colors Petal Type 0

FM-C1450-2250 Flexographic Printing Machine(Petal Type)

  1. Petal type plate mounting, anilox and cylinder with quick change structure.
  2. Printing unit easy operation, cylinder and anilox pressing once successfuly.
  3. Plate full servo shaftless transmission, automatically pre-print, time saving & material saving.
  4. Registering remains the same during lifting process.

Application Object
Suitable for eco-friendly packaging, such as the paper bag used for food and healthcare industry, paper box, paper cup, the pre-printing carton of paper bag, bag courier, milk carton medicine use.

Paper Used
Kraft paper, paperboard, coated paper, liner paper, laminated paper, multilayer composite paper, carton board materials ect.

Technical Parameters:
Specification 1450 1650 1850 2250
Max. Web Width 1450mm 1650mm 1850mm 2250mm
Max. Printing Width 1430mm 1630mm 1830mm 2200mm
Max Die-Cutting Width 1430mm 1630mm 1830mm 2200mm
Printing Repeat 600-1600mm 600-1600mm 600-1600mm 600-1600mm
Max.Unwinder Diameter 1524mm 1524mm 1524mm 1524mm
Max.Rewinder Diameter 1524mm 1524mm 1524mm 1524mm
Gearing 1/8cp 1/8cp 1/8cp 1/8cp
Max Printing Speed 160-220m/min 160-220m/min 160-220m/min 160-220m/min
Diameter of web roller 100mm 100mm 100mm 100mm
Drying mode Warm Drying/IR Drying/ UV Drying
Oil used Aqueous ink/ UV Ink
Power Requirement 380V 3PH 50Hz
Substrate 17g copy paper, cotton paper, 80-450g chrome paper, aluminum-foil paper, BOPP, PET, paper board, kraft paper

Petal Type Fully Automatic Kraft Paper Flexo Printer Printing Machinery

Petal Type Fully Automatic Kraft Paper Flexo Printer Printing Machinery
