Power Supply 380V 3pH 50Hz Fengming Six Color Unit Type Paper Flexo Printing Machine

Power Supply 380V 3pH 50Hz Fengming Six Color Unit Type Paper Flexo Printing Machine

six color unit type

380v unit type

380v flexographic printing machine 6 color

Place of Origin:

CHINA

Brand Name:

FENGMING

Certification:

CE

Model Number:

FM-A650

Contact Us
Request A Quote
Power Supply 380V 3pH 50Hz Fengming Six Color Unit Type Paper Flexo Printing Machine
Power Supply 380V 3pH 50Hz Fengming Six Color Unit Type Paper Flexo Printing Machine Power Supply 380V 3pH 50Hz Fengming Six Color Unit Type Paper Flexo Printing Machine Power Supply 380V 3pH 50Hz Fengming Six Color Unit Type Paper Flexo Printing Machine Power Supply 380V 3pH 50Hz Fengming Six Color Unit Type Paper Flexo Printing Machine Power Supply 380V 3pH 50Hz Fengming Six Color Unit Type Paper Flexo Printing Machine Power Supply 380V 3pH 50Hz Fengming Six Color Unit Type Paper Flexo Printing Machine
Product Details
Model NO.:
FM-A650-1320
Application:
Flexible Packaging Printing
Automatic Grade:
Automatic
Printing Speed:
150m/mim
Max. Web Width:
650/920/1020/1220/1320mm
Max. Printing Width:
600/900/1000/1200/1270mm
Printing Repeat Length:
286-1200mm
Max. Unwinder & Rewinder Diameter:
1524mm
Gearing:
1/8cp
Max. Speed:
150m/Min
Diameter Of Web Roller:
100mm
Main Motor Power Supply:
11kw
Drying Mode:
Hot Air Drying & IR Drying
Ink Used:
Water Based Ink
Power Supply:
380V 3pH 50Hz
Printing Material:
60-350GSM Paper Roll
Transport Package:
Wooden Pallet With Film Package
Specification:
1020mm
Trademark:
Fengming
Origin:
Zhejiang, China
HS Code:
8443160090
Supply Ability:
10 Sets / Month
Printing Page:
Single Faced
Printing Color:
2 Colors
Anilox Roller:
Ceramic Anilox Roller
Dryer:
UV& IR
Embossing Structure:
Rotary Letterpress
Structure:
Unit Type
Customization:
Available | Customized Request
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
wooden pallet
Delivery Time
30 working days
Payment Terms
T/T, L/C
Supply Ability
15 sets
RELATED PRODUCTS
Good price Auto Flexographic Printer, Front Side 9 Colors Back Side 1 Colors Flexo Label Flexographic Printer Printing Press online Video

Auto Flexographic Printer, Front Side 9 Colors Back Side 1 Colors Flexo Label Flexographic Printer Printing Press

Get Best Price
Good price Automatic Flexo Printing Machine Flexographic Printers Flexo Printing Machine Roll To Roll online Video

Automatic Flexo Printing Machine Flexographic Printers Flexo Printing Machine Roll To Roll

Get Best Price
Good price automatic Flexo Printing Machine Plastic Film and Paper label unit type flexo printing machine Colors online Video

automatic Flexo Printing Machine Plastic Film and Paper label unit type flexo printing machine Colors

Get Best Price
Good price FM-CS 1350 Flexo Printing Machine For Paper Plate With Online Video Technical Support online Video

FM-CS 1350 Flexo Printing Machine For Paper Plate With Online Video Technical Support

Get Best Price
Contact Us
86-577-63796999
Contact Now
Product Description

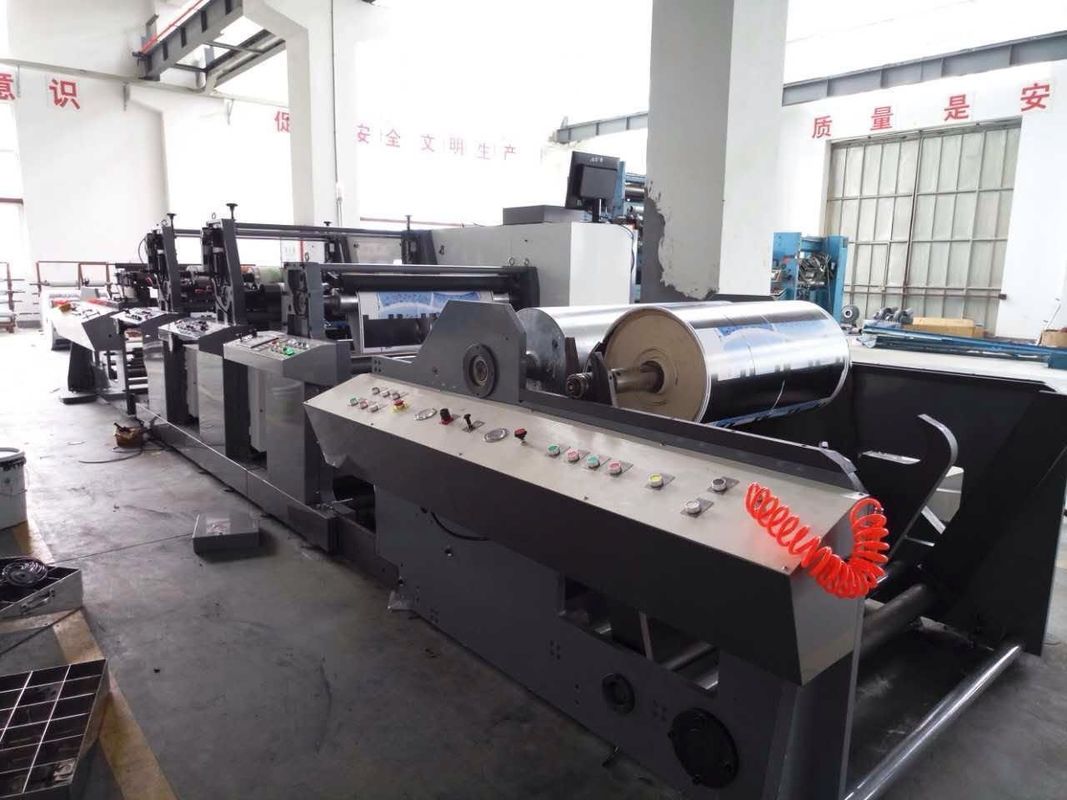

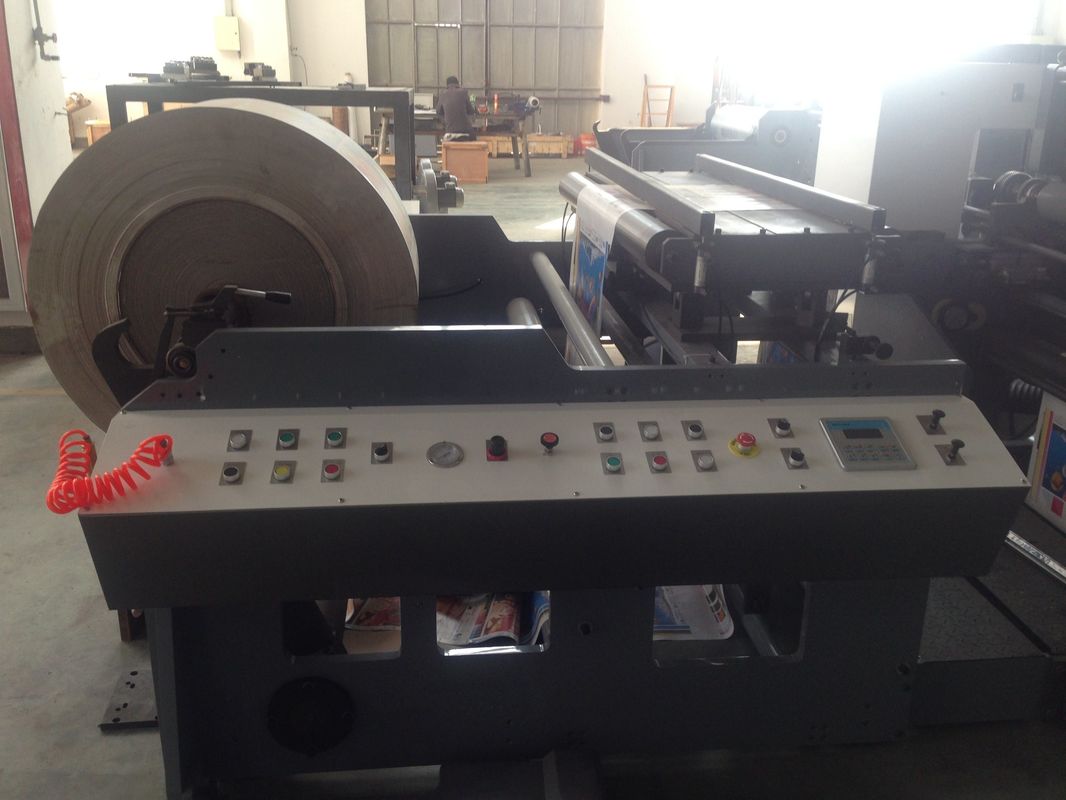

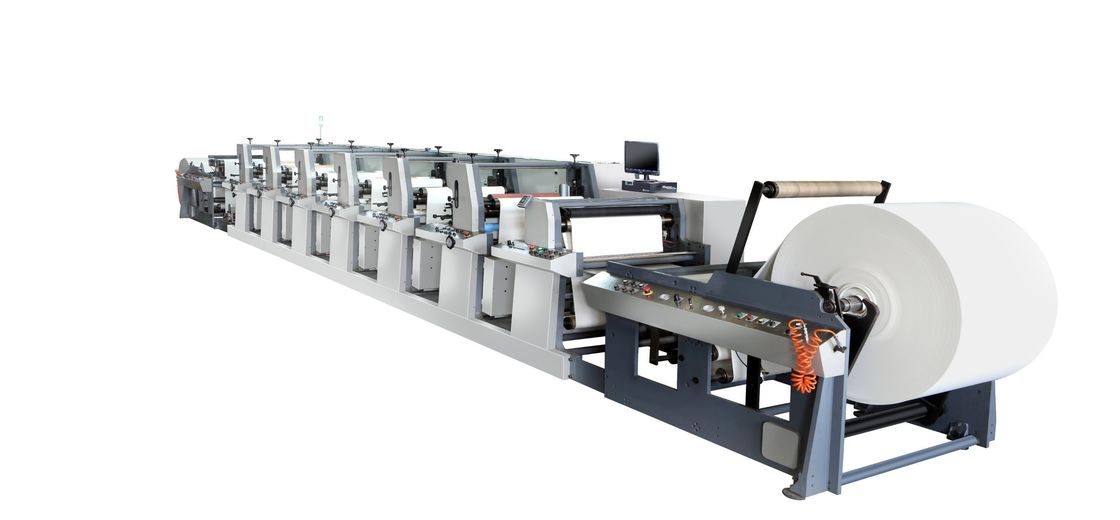

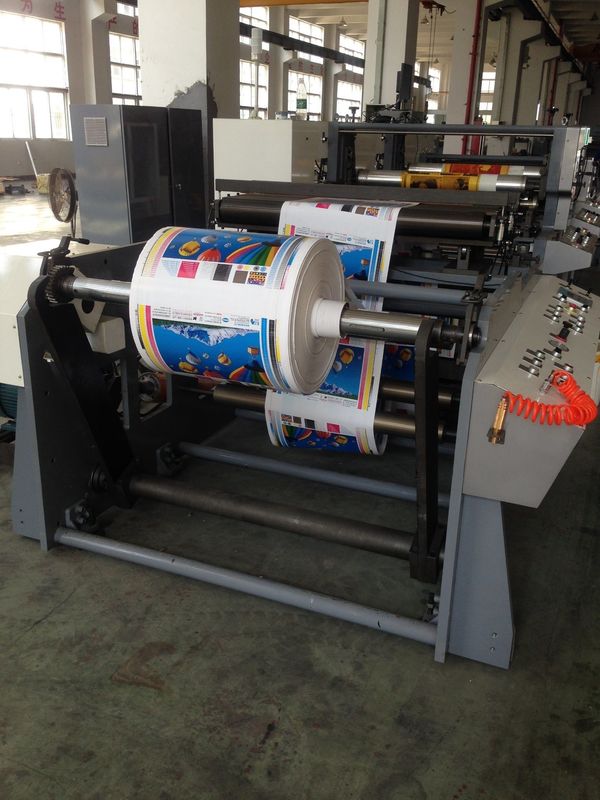

 Power Supply 380V 3pH 50Hz Fengming Six Color Unit Type Paper Flexo Printing Machine

Fengming Six Color Unit Type Paper Flexo Printing Machine
Fengming Six Color Unit Type Paper Flexo Printing Machine

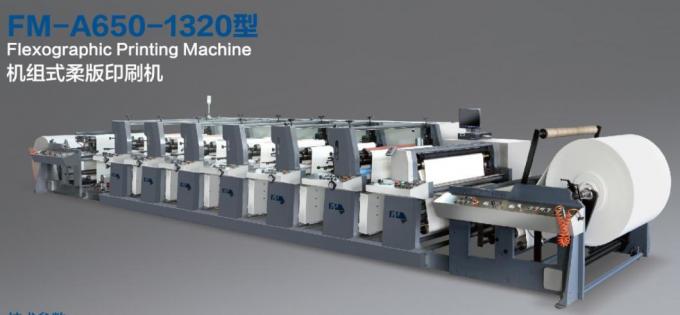

FM-650-920-1320  Flexographic Printing Machine

Application Object

Suitable for eco-friendly packaging, such as the paper bag used for food and healthcare industry, paper box, paper cup, the pre-printing carton of paper bag, bag courier, milk carton medicine use.

Paper Used

Kraft paper, paperboard, coated paper, liner paper, laminated paper, multilayer composite paper, carton board materials ect.

Technical Parameters:

Specification 650 920 1020 1220 1320
Max. Web Width 650mm 920mm 1020mm 1220mm 1320mm
Max. Printing Width 600mm 900mm 1000mm 1200mm 1300mm
Max Die-Cutting Width 600mm 900mm 1000mm 1200mm 1300mm
Printing Repeat 286-1200mm 286-1200mm 286-1200mm 286-1200mm 286-1200mm
Max.Unwinder Diameter 1524mm 1524mm 1524mm 1524mm
Max.Rewinder Diameter 1524mm 1524mm 1524mm 1524mm 1524mm
Gearing 1/8cp 1/8cp 1/8cp 1/8cp 1/8cp
Max Printing Speed 150m/min 150m/min 150m/min 150m/min 150m/min
Diameter of web roller 100mm 100mm 100mm 100mm 100mm
Drying mode Warm Drying/IR Drying/ UV Drying (optional)
Oil used Water based ink/ UV Ink
Power Requirement 380V 3PH 50Hz
Substrate 17g copy paper, cotton paper, 80-400g art paper, aluminum-foil paper, paper board, kraft paper

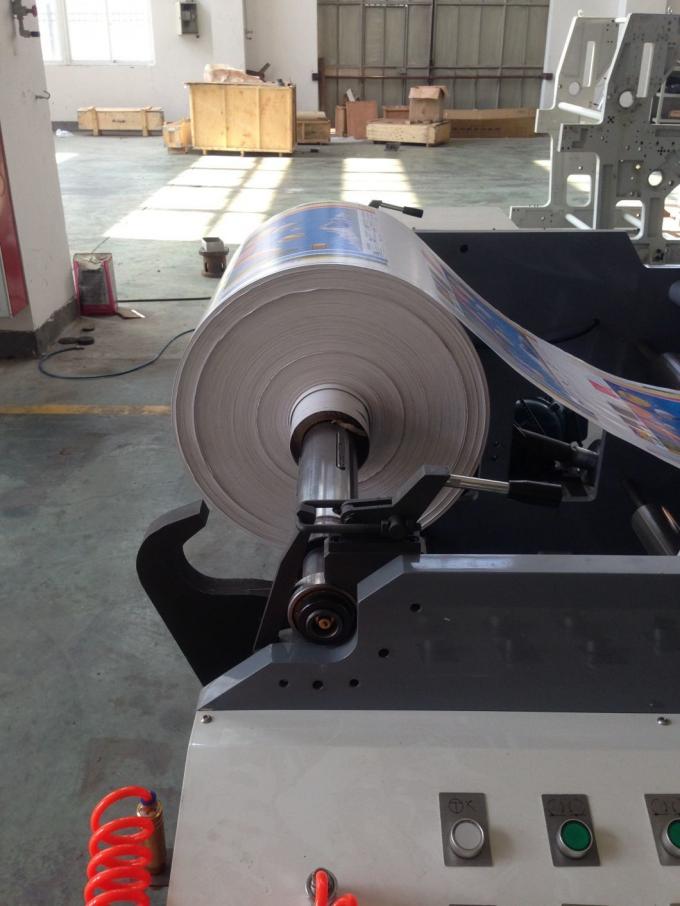

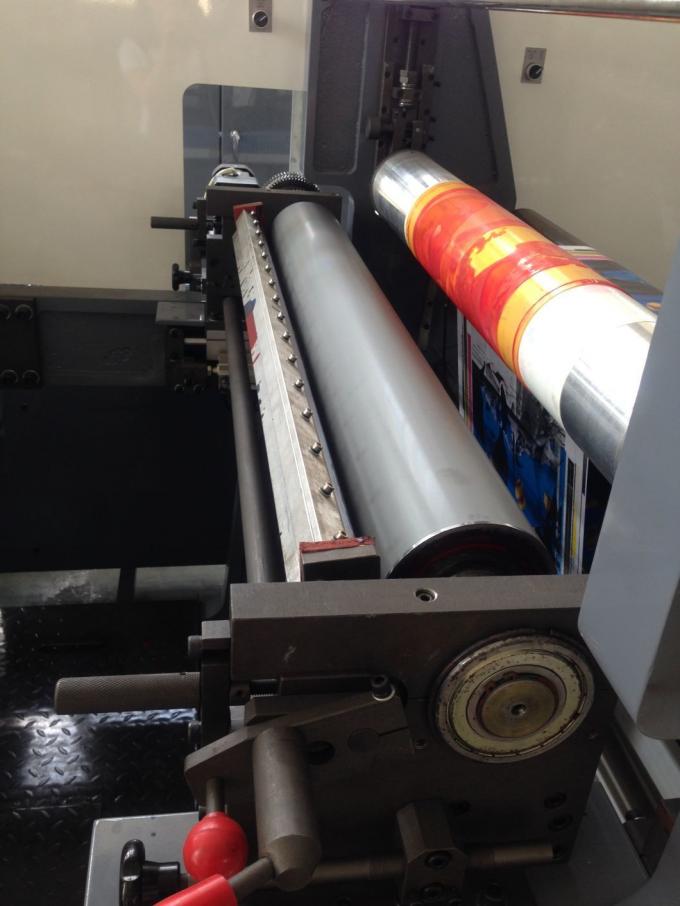

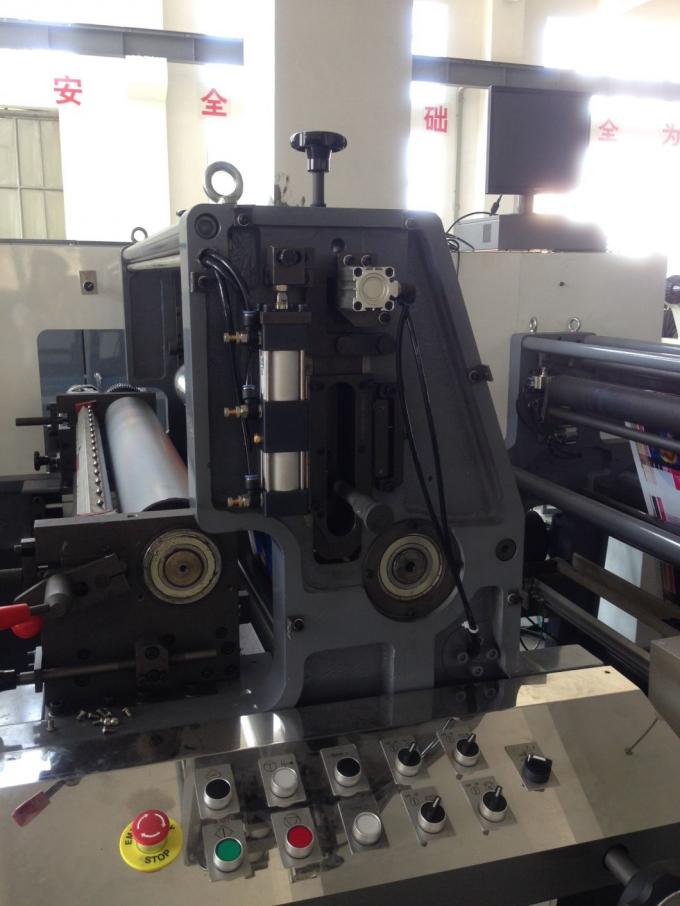

Fengming Six Color Unit Type Paper Flexo Printing Machine
Fengming Six Color Unit Type Paper Flexo Printing Machine
Fengming Six Color Unit Type Paper Flexo Printing Machine
Fengming Six Color Unit Type Paper Flexo Printing Machine
