Place of Origin:
CHINA
Brand Name:
FENGMING
Certification:
CE
Model Number:
FM-T1020

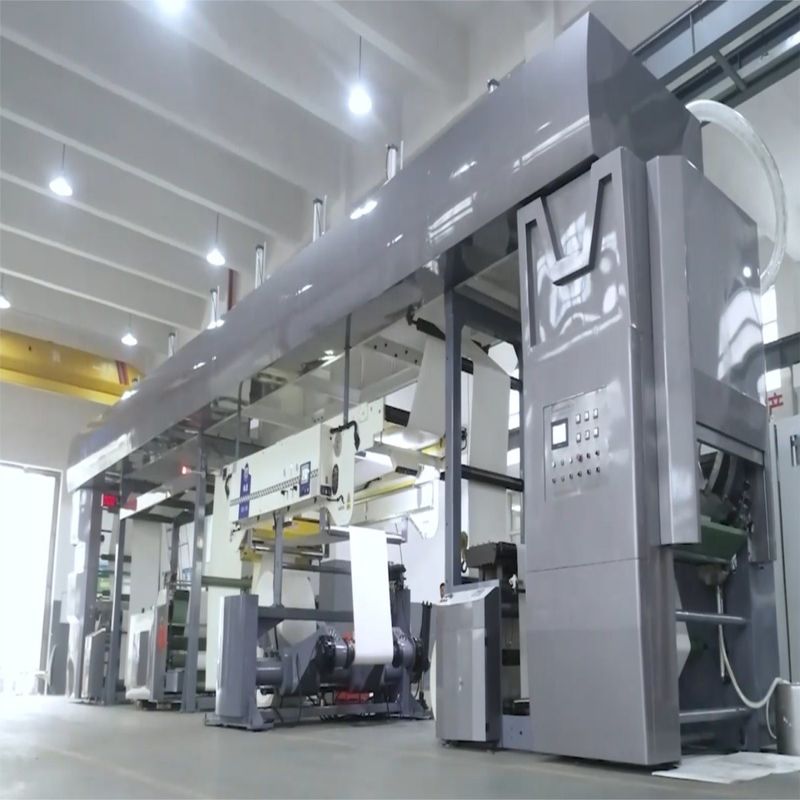

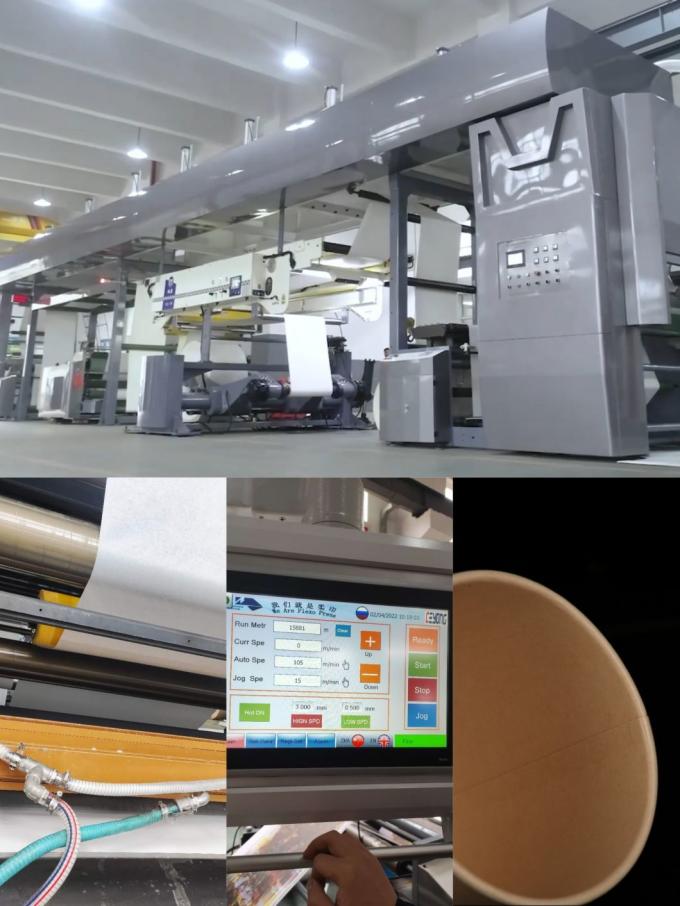

Chemical Coating Machine for Paper Cup US Film Coating without Plastic Replace Film
| Technical Parameters | |
| Specification | FM-T1020 |
| Max.Web Width | 1020mm |
| Max.Diameter Unwinder/Rewinder | 1534mm |
| Max Coating Speed | 150m/min |
| Thickness of Coating | 3.5-8gsm |
| Drying Method | Hot Air&IR |
| Air Knife Length | 1020mm |
| Substrate | Art paper, Cardboard paper, Kraft paper etc paper roll |

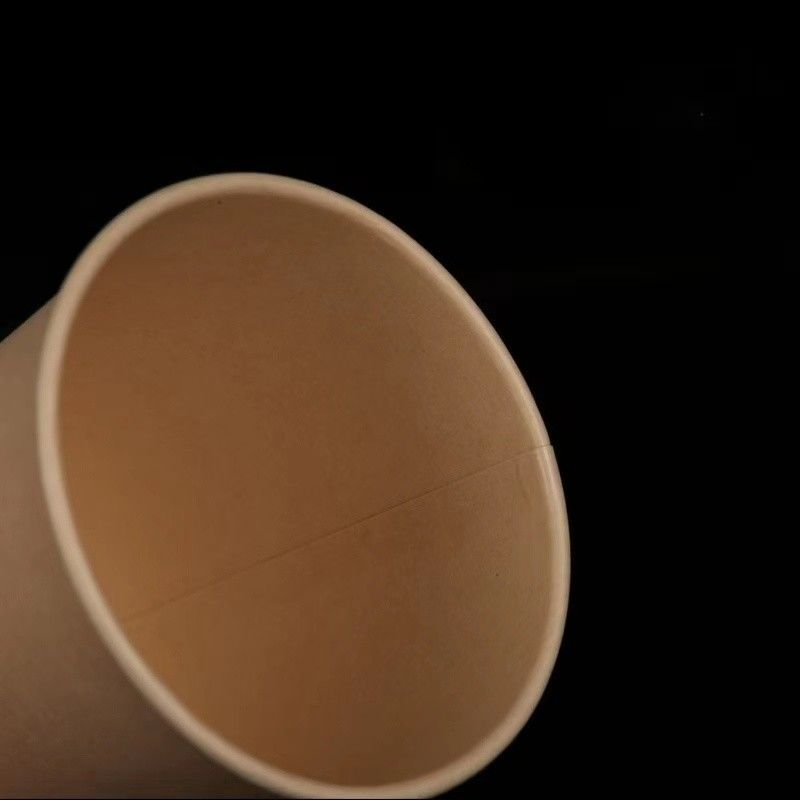

Used in a variety of food packaging industry, such as papercups, paper boxes, paper bags, paper straws etc. Replacing the traditional non-degradable plastic coating products, like PE laminated paper.
The products of this machine, non plastic coated paper, adhering to the concept of green environmental protection, meets internation market requirements in terms of heat sealing performance, barrier performance, food safy performance, degrdation and waste recycling.

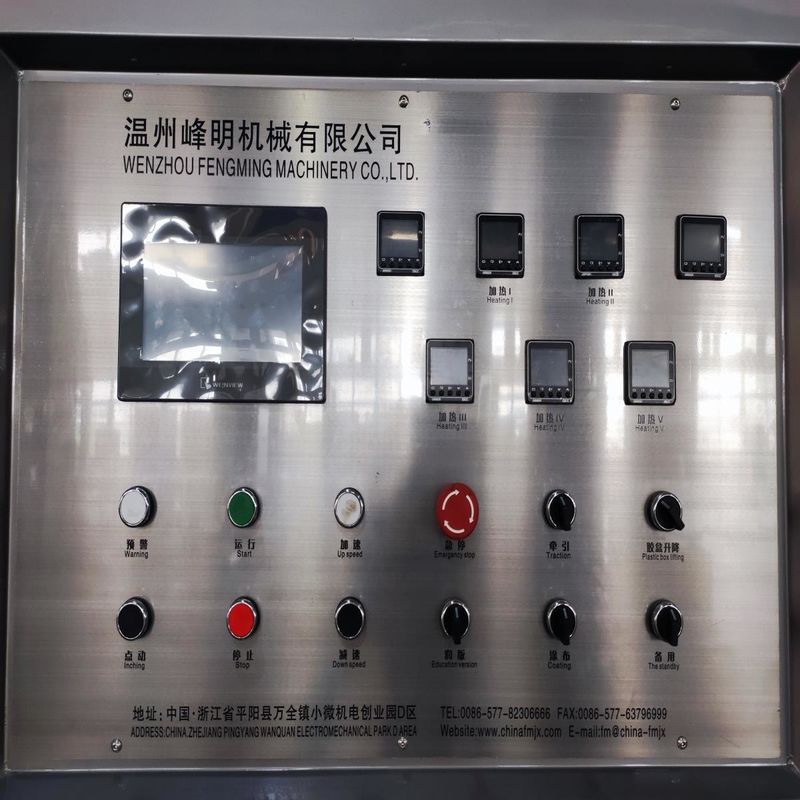

The coating is equipped with main power motor for setting the main speed. Special motor is used for coating ration. Through the scale setting of the computer, matching the relationship between formula and material provided by Fengming company, coating is finished according to the speed.
