Place of Origin:
CHINA
Brand Name:
FENGMING
Certification:
CE
Model Number:
FM-L1200

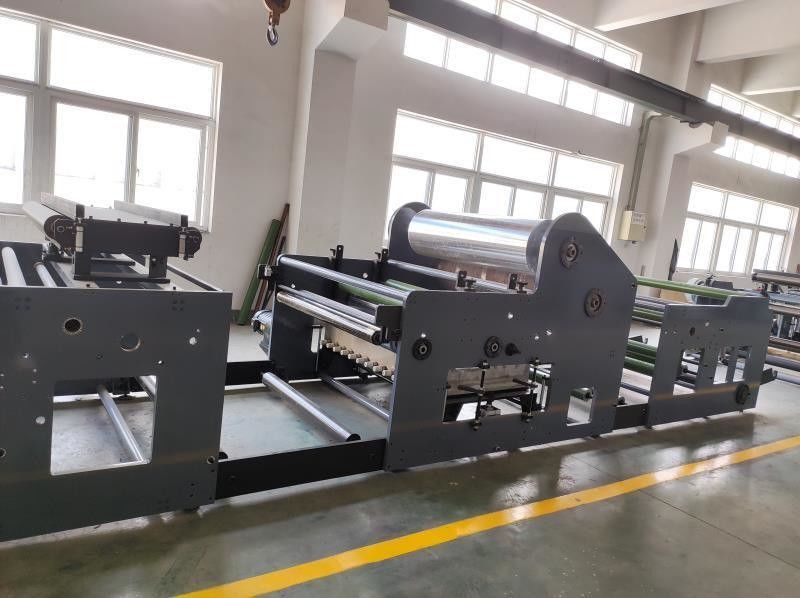

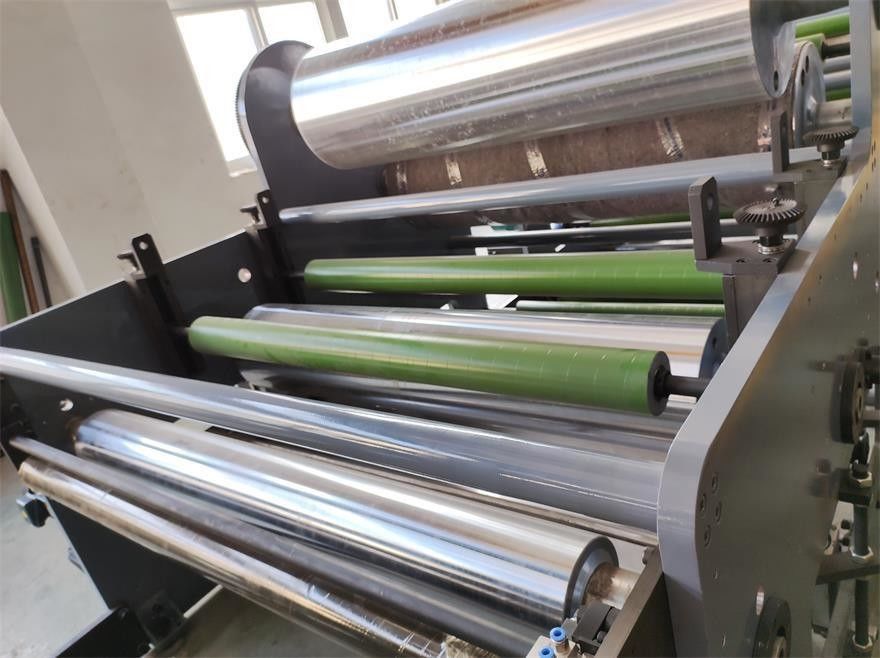

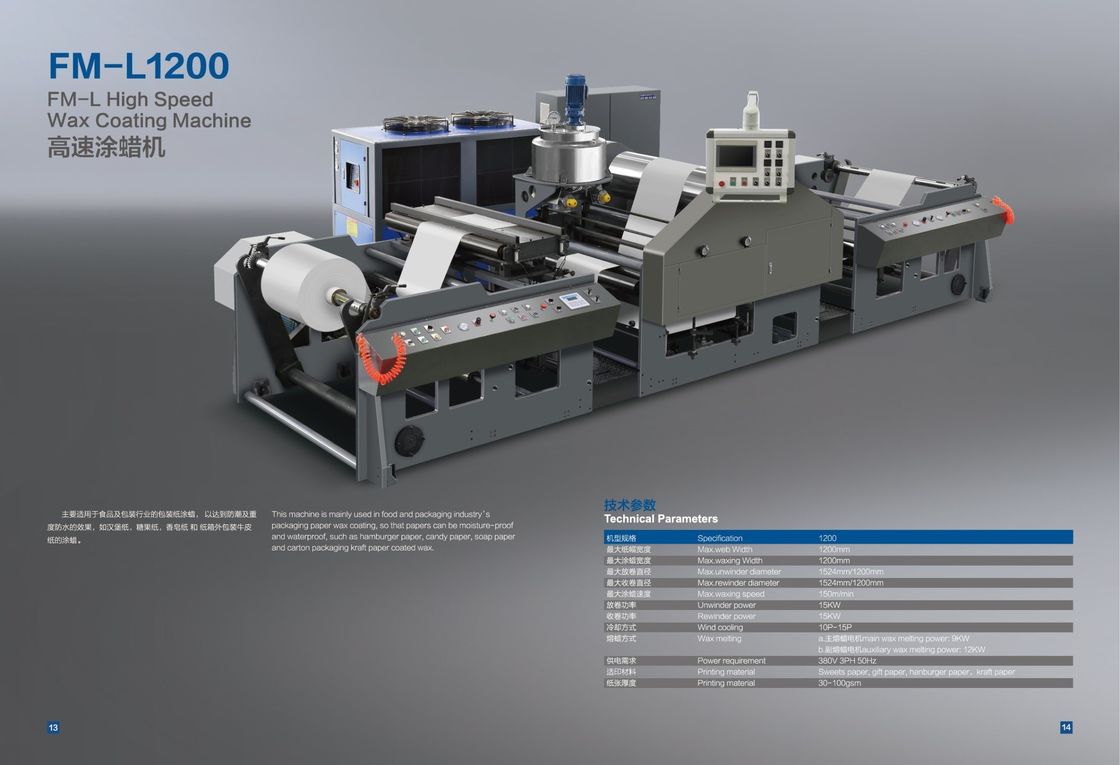

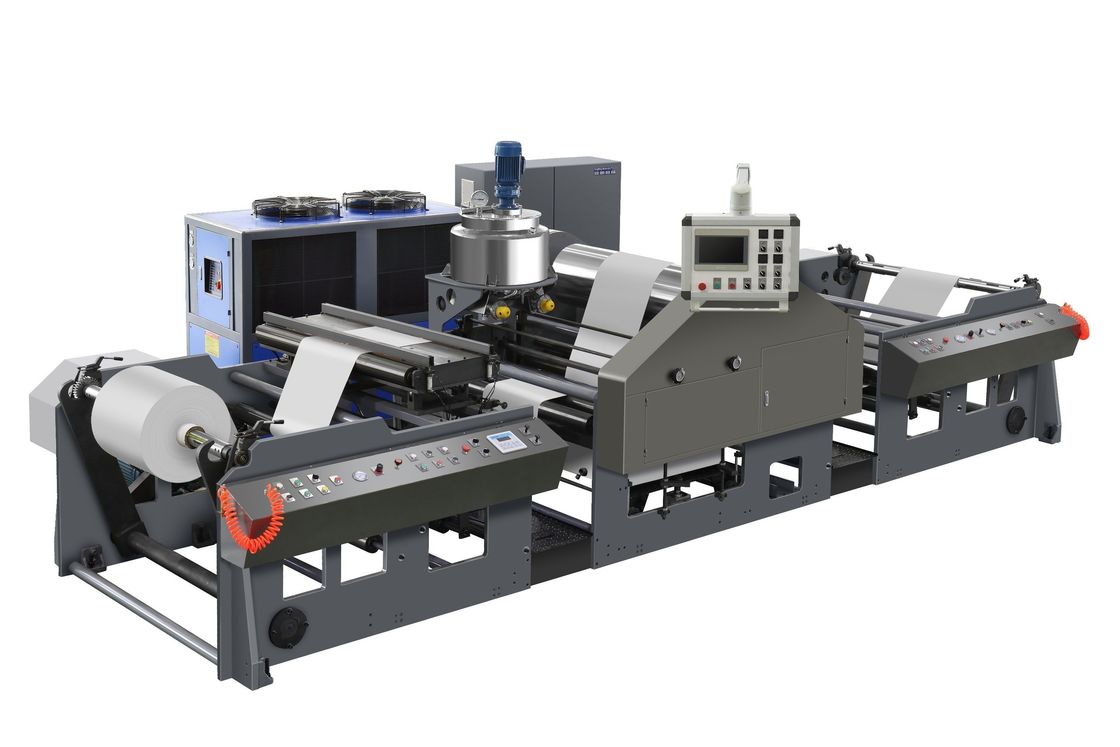

Customized Request Hamburger Paper Coating Machine 1200cm * 450cm * 200cm Package Size
This machine iss mainly used in food and packaging industry's packaging paper wax coating, so that papers can be moisture-proof and waterproof, such as hamburger paper, candy paper, soap paper and carton packaging kraft paper coated wax.
This invention can realize high speed paper coated with wax, effective control of wax quantity, waxing effect is stable and evenly.
| Tachnical Parameters | |
| Specification | 1200 |
| Max.Web Width | 1200mm |
| Max.waxing Width | 1200mm |
| Max.unwinder diameter | 1524mm |
| Max.rewinder diameter | 1524mm |
| Max.waxing speed | 150m/mim |
| Rewinder power | 7.5kw |
| Water Cooling System | 10P-15P |
| Wax melting | Wax Tray Heaater:18kw; Blade Heater:4kw |
| Power Requirement | 380V 3PH 50HZ |
| Material | Sweets paper, gift paper, hamburger paper, kraft paper |
| Material | 30-100gsm |
